HCN Australia

Skid Steer Attachments

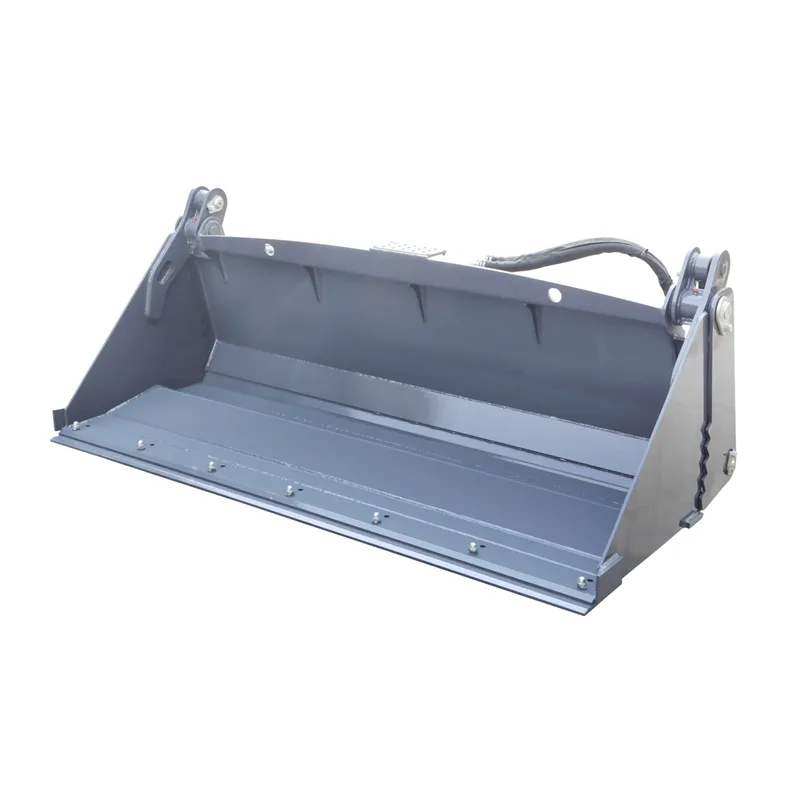

Heavy Duty Four In One Bucket

Multi-Purpose Loading

  • Catalogue category: Skid Steer Attachments
  • Technical specifications and model data on this page
  • Fitment review available before export quotation
Contact export team

Include machine brand/model, hydraulic flow and pressure (if applicable), quantity and Australian delivery port or inland requirements.

Product

Overview

· This four-in-one attachment can be used as a bucket for loading, carrying and dumping; as a grapple for handling odd-shaped objects; or for dozing, leveling and spreading material with the clamshell open.

· Compact Wheel Loaders

· Designed to capitalize on the full capabilities of your , this four-in-one attachment can be used as a bucket for digging, loading, carrying and dumping; as a grapple for handling odd-shaped objects; or for dozing, leveling and spreading material with an open clamshell.

· Replace the cutting edges on the rear of the clamshell and dozer

· The bottom of the bucket and clamshell are reinforced to improve strength and rigidity.

· The interlocking and serrated grapple edges hold objects securely, even heavy and odd-shaped materials.

· The bolt-on cutting edges protect the corners of the bucket. The combination bucket is built with heavy-duty cutting edges for long life.

· The bucket features interlocking, serrated grapple edges for clamping materials in a variety of applications, including construction, recycling and forestry.

· When the clamshell is fully opened, it can be used as a dozer blade.

· Composed of three wear steel plates and domestic high-end quality hydraulic cylinders.

Data

Technical Specifications

Model

Mini010440

010460

010472

010484

Overall length (mm)

530

766

951

940

Overall Width (mm)

1036

1586

2194

2195

Overall Height (mm)

522

704

715

820

Open distance(mm)

550

810

880

900

Weight(include hitch)(Kg)

117

304

418

537

Flat container/loading capacity(m³)

0.09/0.13

0.3/0.34

0.53/0.65

0.57/0.76

Working flow(L/min)

10-15

20-30

20-30

20-30

Working pressure(MPa)

21

21

21

21

Package volume (CBM)  M3


0.98

1.5


Optional accessories

Standard auxiliary blade and side teeth, optional main teeth

Suit to machine

Mini skid steer

Skid steer loader

Engineering

Key Features & Benefits

  • Heavy Duty Four In One BucketFactory-built HCN attachment listed under Skid Steer Attachments. Confirm coupler geometry and hydraulic data against the specification table before ordering.
  • Use caseMulti-Purpose Loading
  • Export supportQuotation, fitment review and export packing documentation for Australian and overseas delivery.

Fitment

Machine Compatibility

This product is published under Skid Steer Attachments. Mounting interface, carrier size and hydraulic supply must match your machine — use the Technical Specifications table where provided (including any Suitable Machine or carrier row per model).

Catalogue category What to confirm
Skid Steer Attachments Machine brand and model; mounting plate or coupler type; hydraulic flow and pressure (L/min, bar) for hydraulic tools; quantity and delivery location.

Jobsite

Applications

Typical uses depend on machine capability and local regulations. Examples for this machine line:

  • Construction
  • Landscaping
  • Agriculture
  • Municipal maintenance
  • Forestry
  • Snow removal

06 — Programs

OEM & Custom Options

HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.

  • Dimensions & capacity Custom width, working depth, capacity, and duty configuration for your market.
  • Mounting interface Quick-attach plates, coupler geometry, and pin dimensions matched to machine data.
  • Hydraulic setup Standard-flow / high-flow options and circuit layout confirmed before production.
  • Private label Color, logo, nameplate, and export packaging for OEM and distributor brands.
  • After-sales kits Wear parts and spare kits for dealer stock and field service support.
  • Export packing Steel frame or crate packing prepared for container loading and destination handling.

Share annual volume, destination country, and branding requirements for a manufacturing proposal.

  • 20+Years manufacturing attachments
  • 400+Attachment models in portfolio
  • 21,000㎡Modern production facility
  • CE / ISOQuality systems for export markets

07 — Buying

FAQ

Send machine brand, exact model, operating weight, and hydraulic flow/pressure for Heavy Duty Four In One Bucket. We confirm the mounting interface and recommend the correct configuration before quotation.

Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.

Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.

Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.

Click Request A Quote, email shinzhang@hcnatta.com.au, or call +61 416451515. Complete inquiries are usually answered within 1 business day.
