Skid Steer AttachmentsRoad Milling & Planing
Include machine brand/model, hydraulic flow and pressure (if applicable), quantity and Australian delivery port or inland requirements.
Product

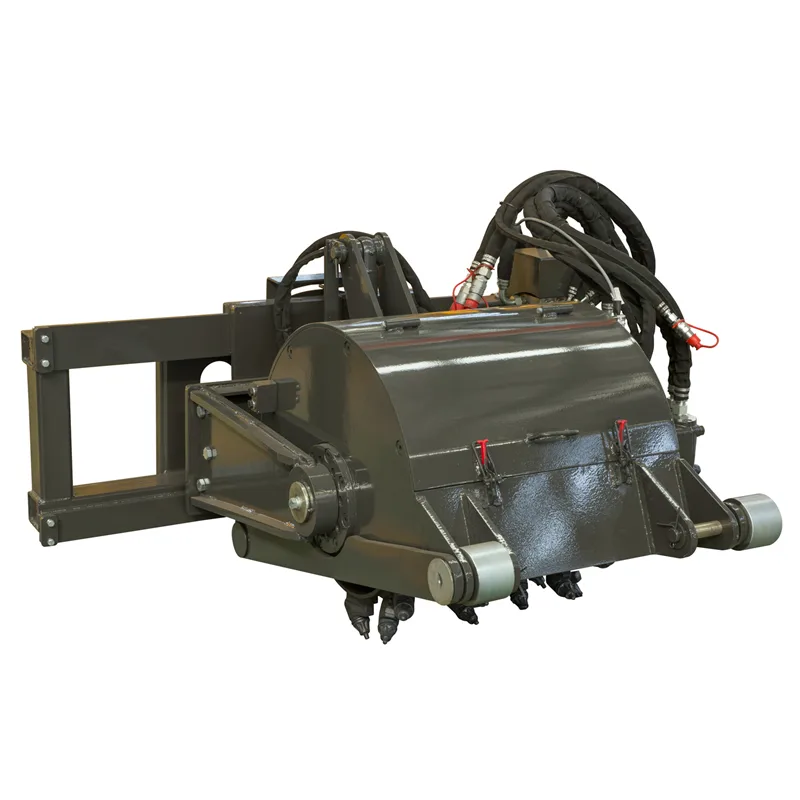

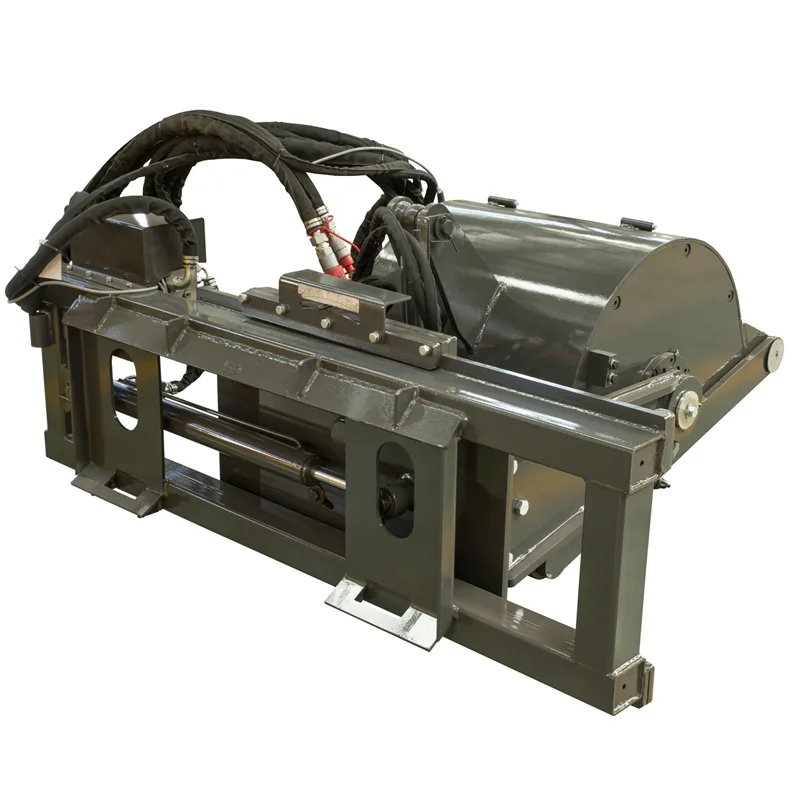

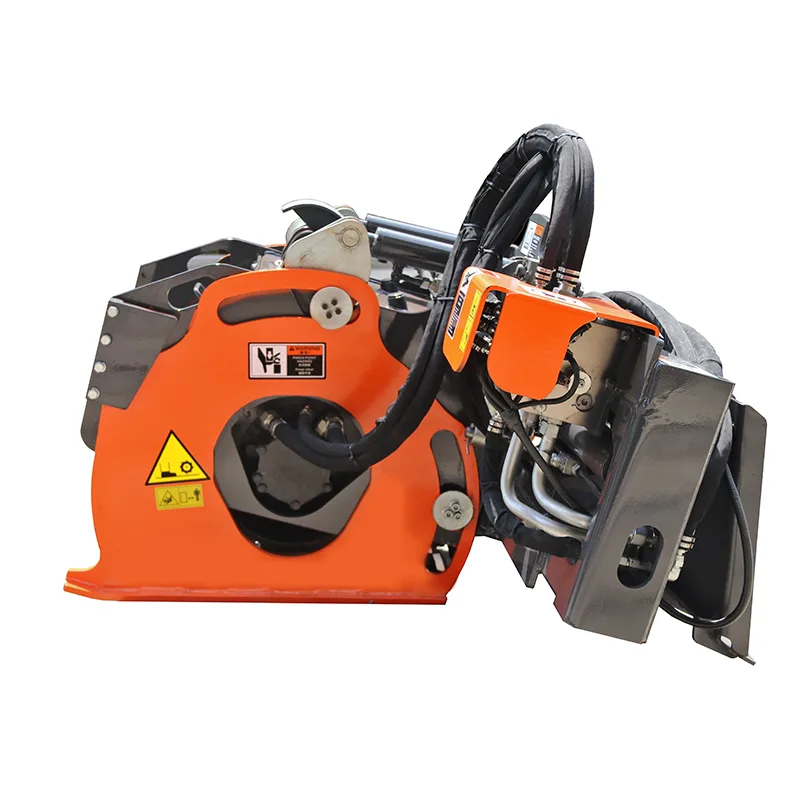

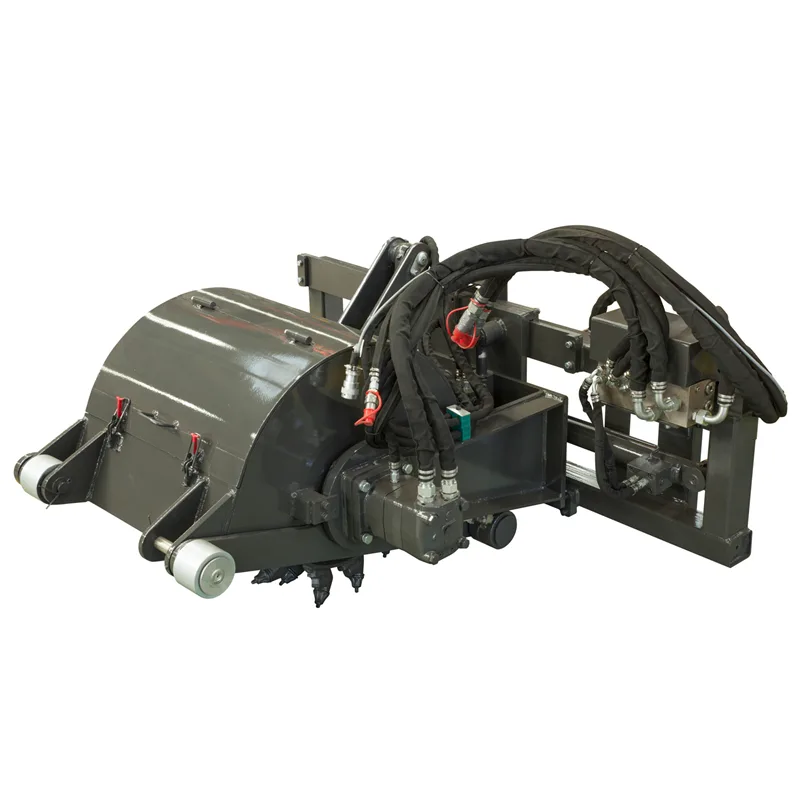

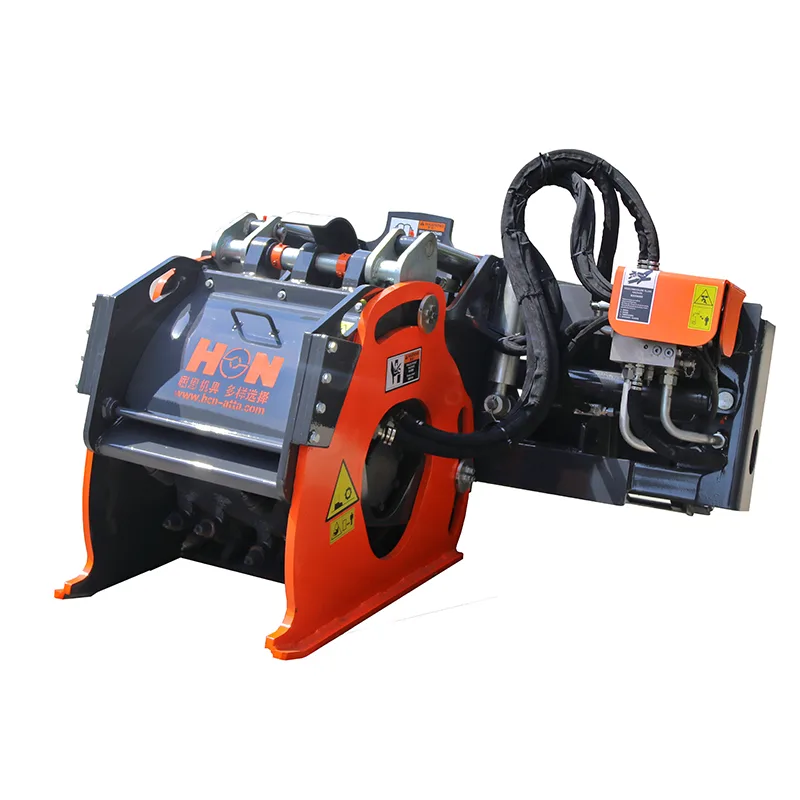

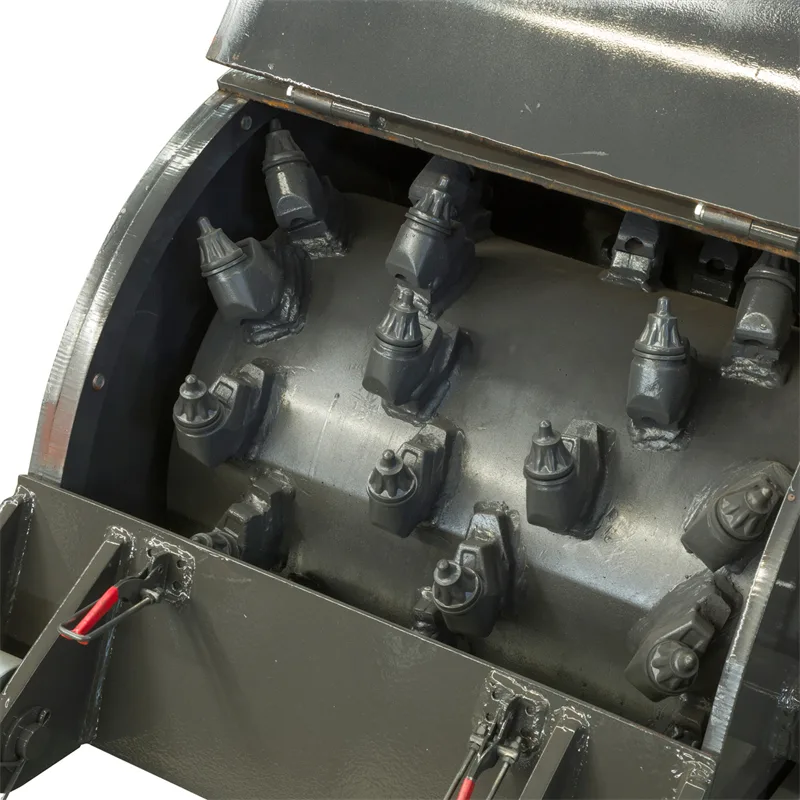

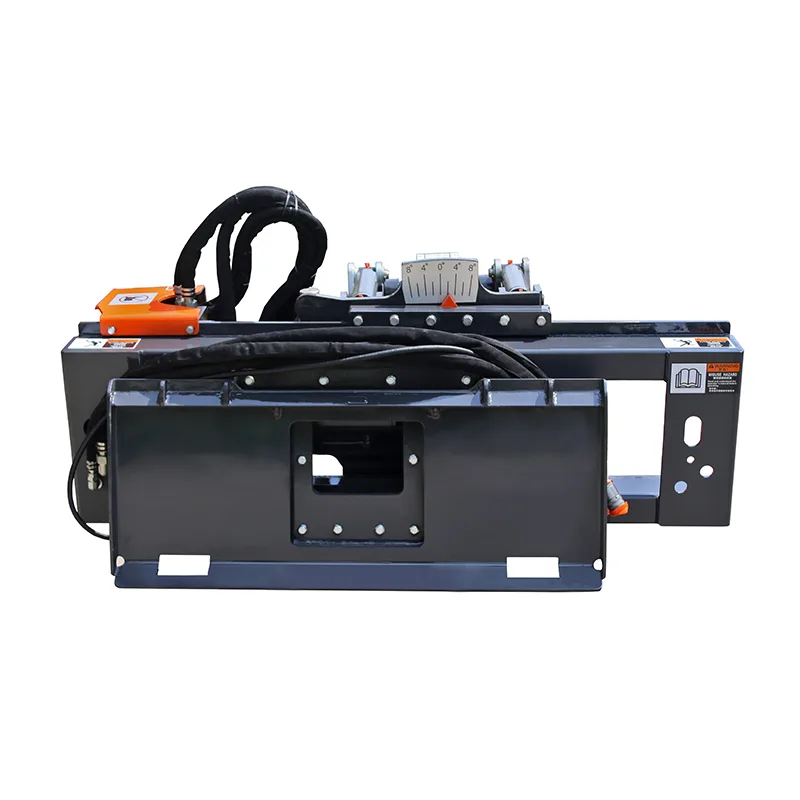

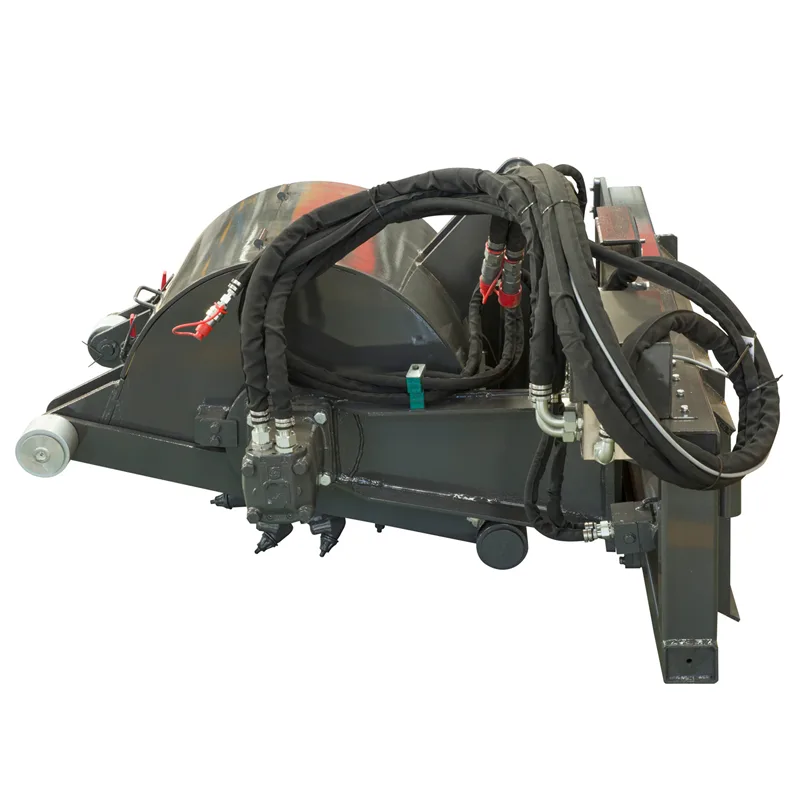

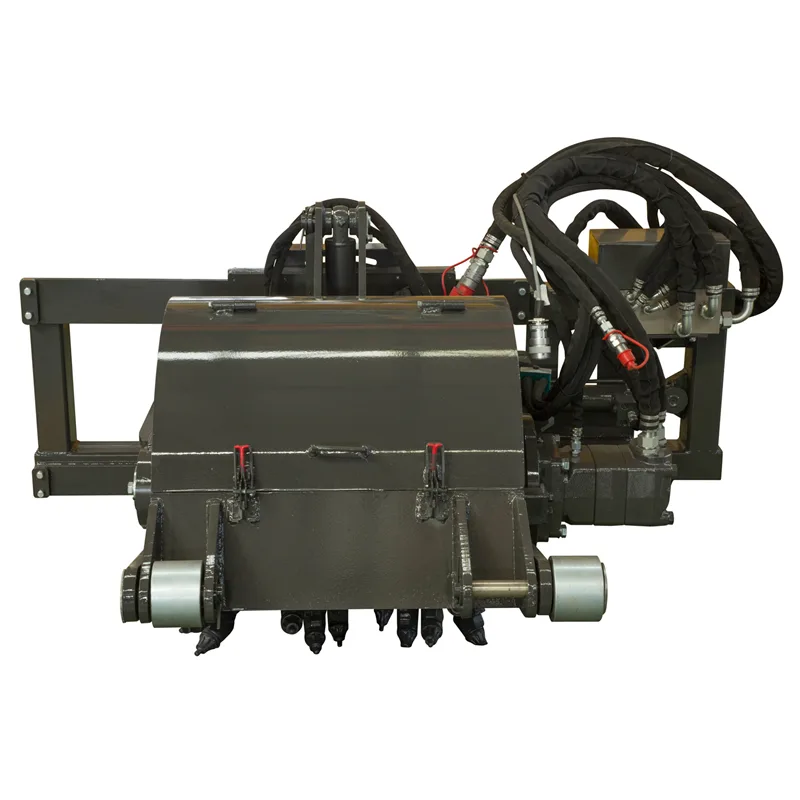

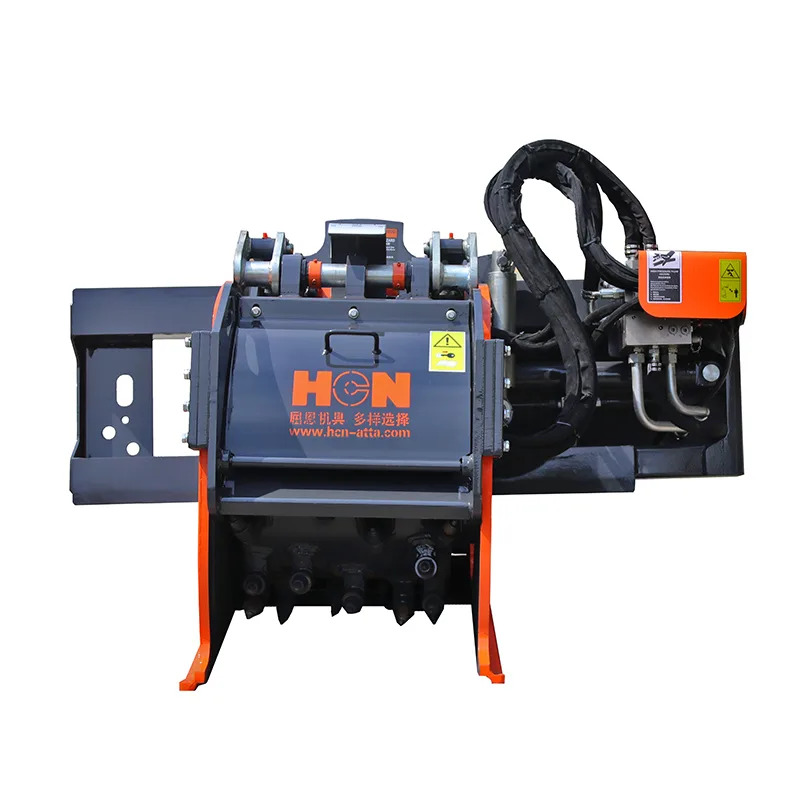

The value and popularity of HCN skid steer cold planer attachments are becoming increasingly more evident because of the variety of jobs they can assist with. In addition to small milling jobs in which large milling machines can't efficiently be used, cold planers are an effective tool for asphalt and concrete pothole and frost heave repair, curb cutting, pavement texturing for improved skid resistance, and the removal of traffic lane stripes and roadway around manholes. This product is also available CE certified.
Planetary drive delivers high torque
High rear spoil clearance to prevent recirculation of material
Protective shields for hydraulic and electrical components
Efficient piston drive motor
Optional water tank available with adjustable mounting brackets to fit most skid steer loaders
Data
Model | 020612 | 020618 | 020620 |
Overall Length (mm) | 1376 | 1376 | 1376 |
Overall Width (mm) | 1727 | 1727 | 1727 |
Overall Height (mm) | 935 | 935 | 935 |
Working Width (mm) | 300 | 450 | 500 |
Working Depth（mm） | 150 | 150 | 150 |
Turning distance（mm） | 600 | 600 | 600 |
Flow（l/min） | 120-130 | 130-140 | 130-140 |
Pressure (MPa) | 21 | 21 | 21 |
Operating voltage (V) (optional) | DC12/24 | DC12/24 | DC12/24 |
Weight（Kg） | 580 | 887 | 980 |
Engineering
Fitment
This product is published under Skid Steer Attachments. Mounting interface, carrier size and hydraulic supply must match your machine — use the Technical Specifications table where provided (including any Suitable Machine or carrier row per model).
| Catalogue category | What to confirm |
|---|---|
| Skid Steer Attachments | Machine brand and model; mounting plate or coupler type; hydraulic flow and pressure (L/min, bar) for hydraulic tools; quantity and delivery location. |
Jobsite
Typical uses depend on machine capability and local regulations. Examples for this machine line:
06 — Programs
HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.
Share annual volume, destination country, and branding requirements for a manufacturing proposal.
07 — Buying
Send machine brand, exact model, operating weight, and hydraulic flow/pressure for 0206 series Cold Planer. We confirm the mounting interface and recommend the correct configuration before quotation.
Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.
Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.
Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.
Click Request A Quote, email shinzhang@hcnatta.com.au, or call +61 416451515. Complete inquiries are usually answered within 1 business day.
