Skid Steer AttachmentsSweeping & Surface Cleaning
Include machine brand/model, hydraulic flow and pressure (if applicable), quantity and Australian delivery port or inland requirements.
Product

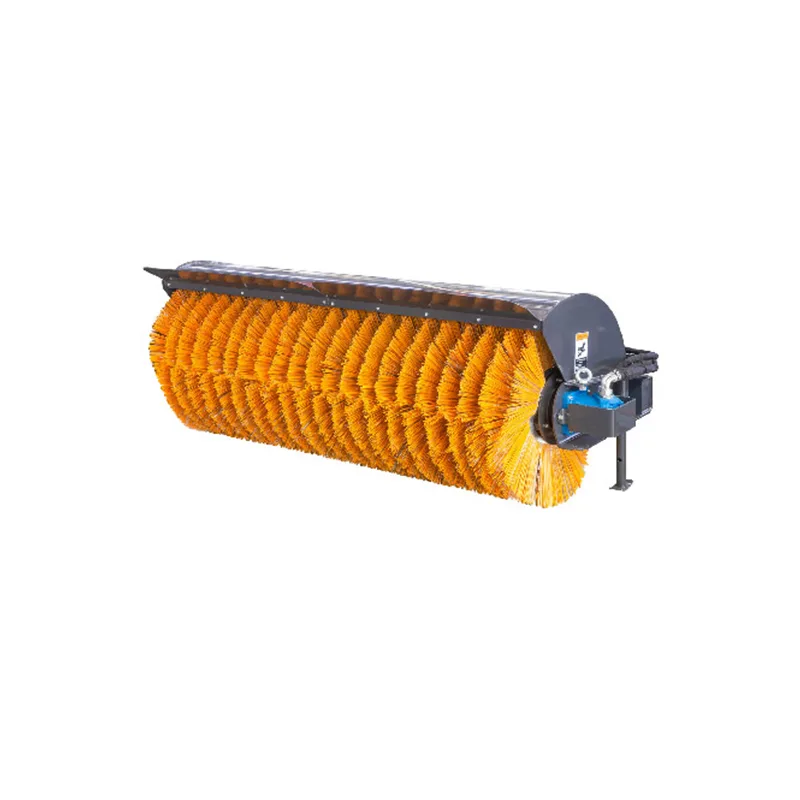

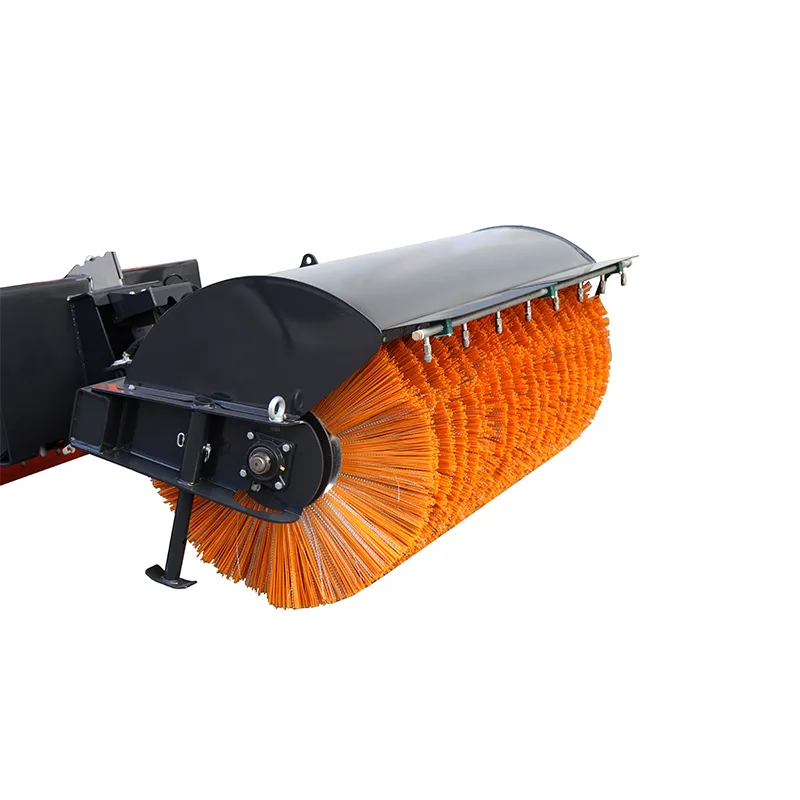

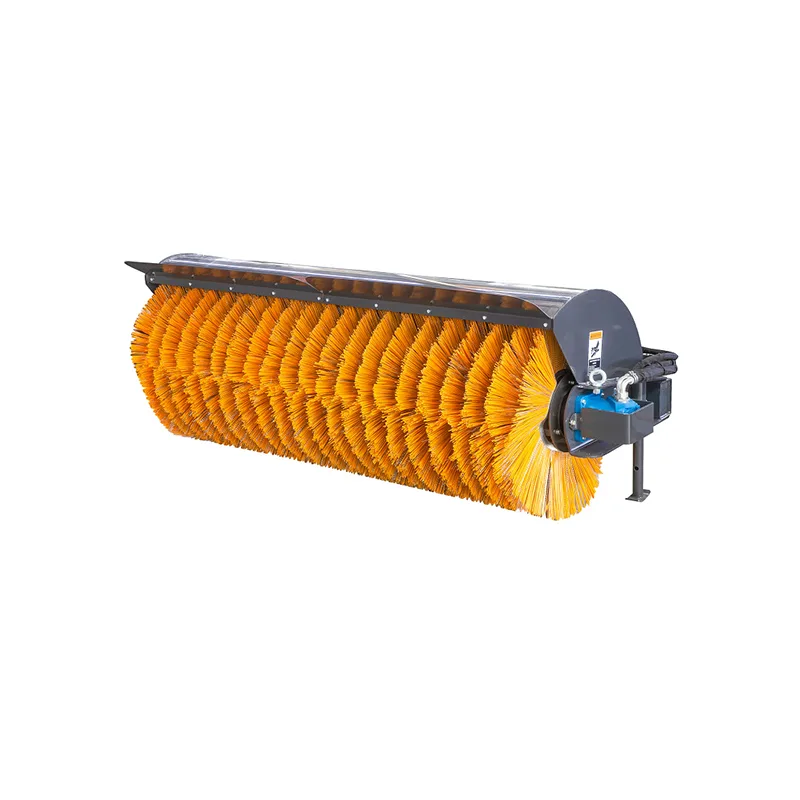

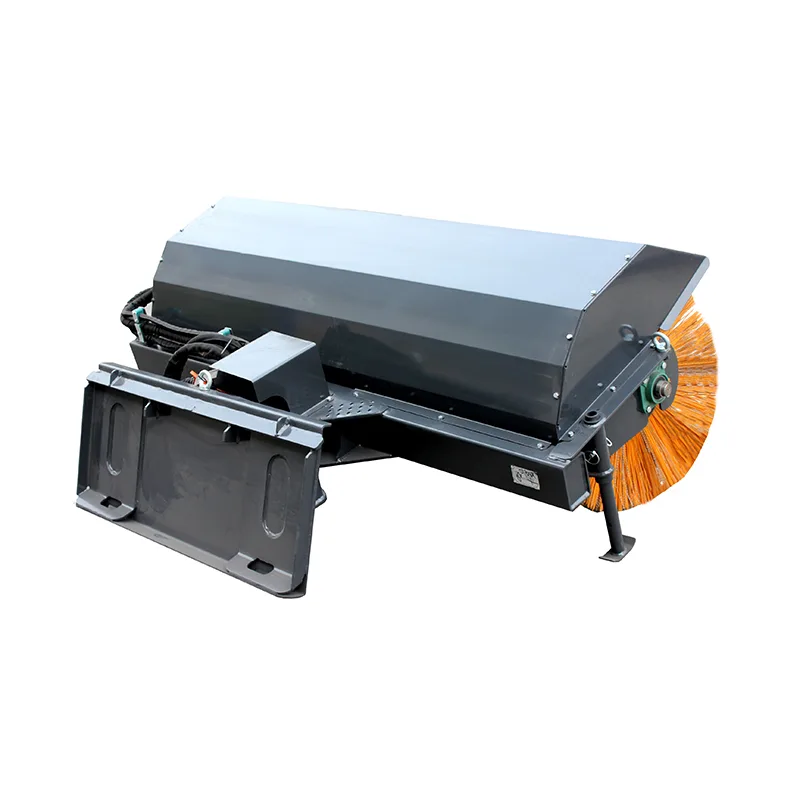

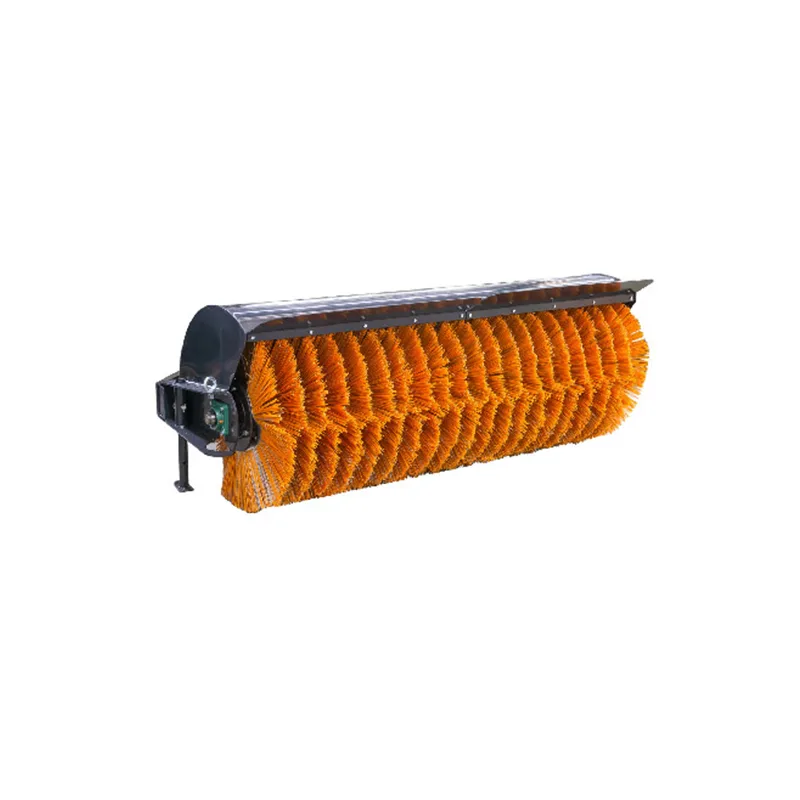

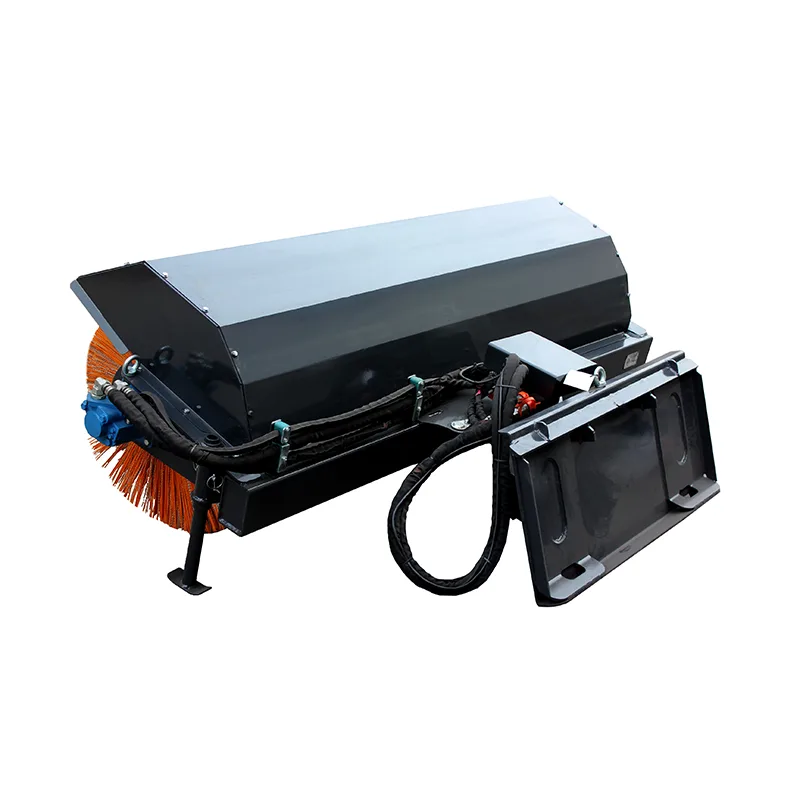

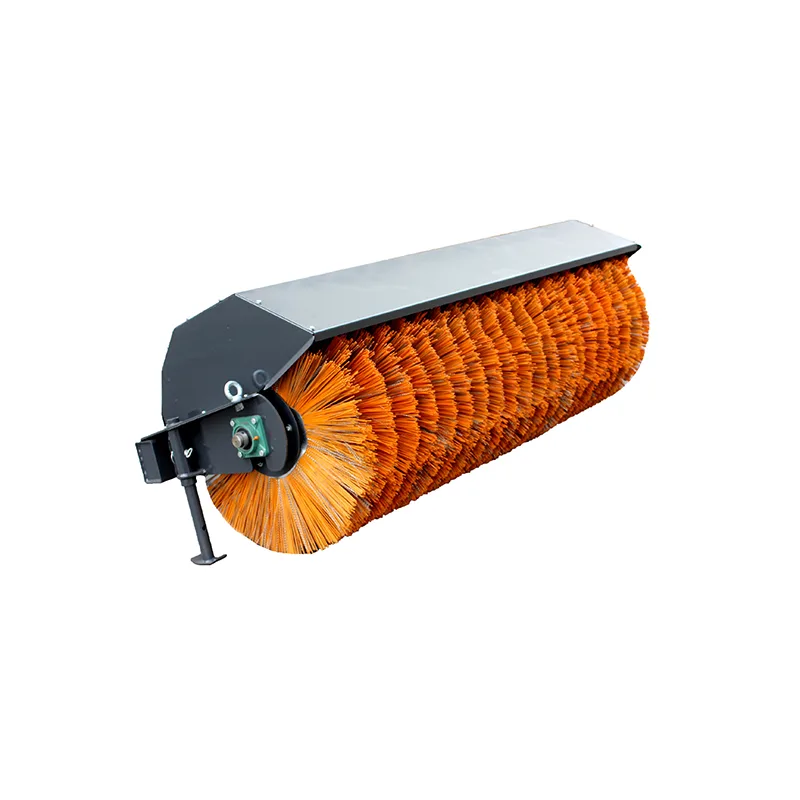

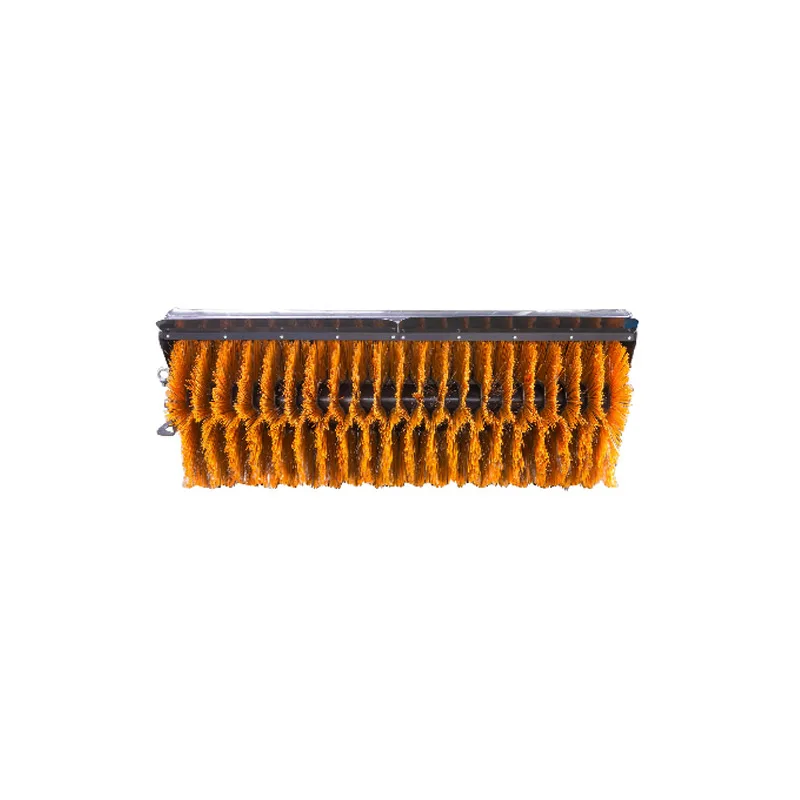

The HCN 72’’ skid steer rotary angle broom is hydraulically driven for cleaning debris, sands and snow on roads, parking lots and other flat areas. The broom can angle left and right, comes with poly/wire mix bristles, an adjustable stand to prevent bristles from damage when unused, and a durable direct-drive hydraulic Eaton motor. Spare wafers are available for purchase separately.
Efficiently sweep and clean with the hydraulically driven angle broom attachment
Heavy-duty broom bristles create a cleaner path and sweep more snow or debris in one pass
Reverse bristle rotation available on the 72-inch and 84-inch angle brooms for enhanced cleaning along curbs, corners and around obstacles
Reversible angle broom is available for all compact track loaders and skid-steer loaders;
This product is backed with a one-year manufacturer warranty,
Data
Features:
· Durable direct-drive hydraulic Eaton motor works more efficiently and reduces downtime
· Floating linkage design keeps the broom adapt to the road surface properly and consistently, reducing the bristles wearing
· Poly/wire mix bristles
· Adjustable protection metal stand
· Hydraulic hoses included
· The case drain line (the third hose) provides the option to release motor case pressure and alternatively extend motor lifetime.
· Bi-directional rotation bristles
· A motor protection guard frame installed
· One cylinder hydraulic,two cylinder hydraulic and manual angle rotating design optional
Specifications:
· Working width: 60”,72”,84”
· Number of wafers: 41
· Brush diameter: 31.5"
· Core diameter: 10.04”
· Sweeping width at 30° angle: 63”
· Maximum angle (left and right): +/- 30°
· Hydraulic flow: Min. 10 GPM to Max 25 GPM
· Compatible to use high-flow
Packaging:
· Packed in a metal shipping crate
· Shipping dimension: 89’’ x 57’’ x 31’’
· Shipping weight: 1230 lb
0201 Angle Broom
Model | 020160 I | 020172 I | 020184 I |
Overall Length (mm) | 1625 | 1625 | 1625 |
Overall Width (mm) | 1804 | 2163 | 2435 |
Overall Height (mm) | 870 | 870 | 870 |
Overall Weight (mm) | 500 | 545 | 575 |
Working Width （kg） | 1500 | 1800 | 2100 |
Turning Angle (°) | ±30° | ±30° | ±30° |
Working Width at 30°(mm) | 1250 | 1550 | 1850 |
Brush Diameter (Φmm) | Φ800 | Φ800 | Φ800 |
Working Pressure (Mpa) | 21 | 21 | 21 |
Working Flow （L/Min） | 70-85 | 80-100 | 80-100 |
Working Voltage （V） | DC12/24 | DC12/24 | DC12/24 |
Package Volume (m3) | 4.096 | 4.830 | 5.385 |
Brush Quantity (piece) | 30 | 37 | 41 |
Electrical and hydraulic control | |||
Engineering
Fitment
This product is published under Skid Steer Attachments. Mounting interface, carrier size and hydraulic supply must match your machine — use the Technical Specifications table where provided (including any Suitable Machine or carrier row per model).
| Catalogue category | What to confirm |
|---|---|
| Skid Steer Attachments | Machine brand and model; mounting plate or coupler type; hydraulic flow and pressure (L/min, bar) for hydraulic tools; quantity and delivery location. |
Jobsite
Typical uses depend on machine capability and local regulations. Examples for this machine line:
06 — Programs
HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.
Share annual volume, destination country, and branding requirements for a manufacturing proposal.
07 — Buying
Send machine brand, exact model, operating weight, and hydraulic flow/pressure for Angle Broom. We confirm the mounting interface and recommend the correct configuration before quotation.
Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.
Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.
Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.
Click Request A Quote, email shinzhang@hcnatta.com.au, or call +61 416451515. Complete inquiries are usually answered within 1 business day.
