HCN Australia

Skid Steer Attachments

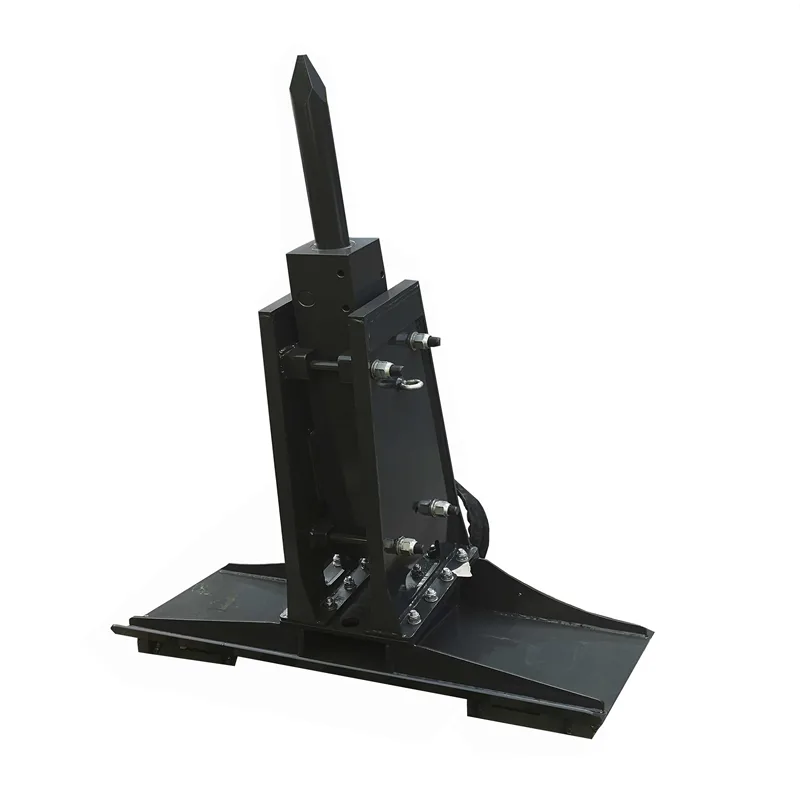

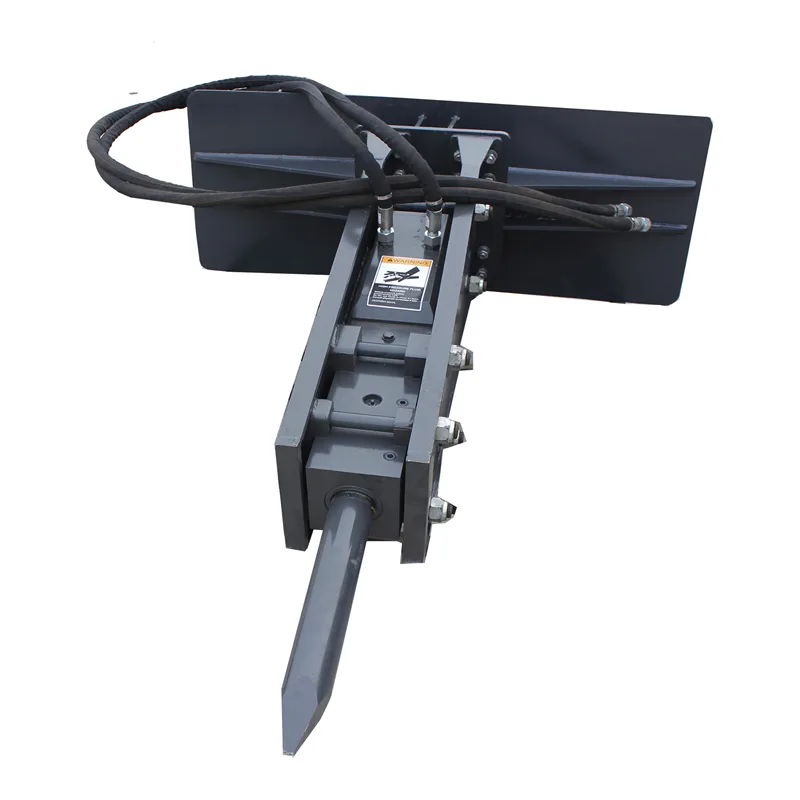

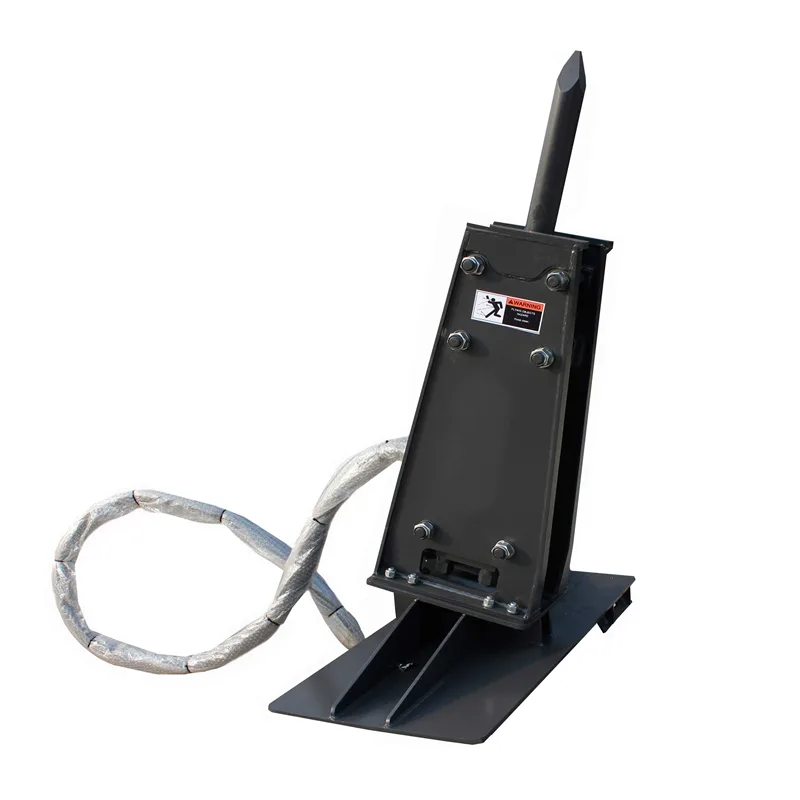

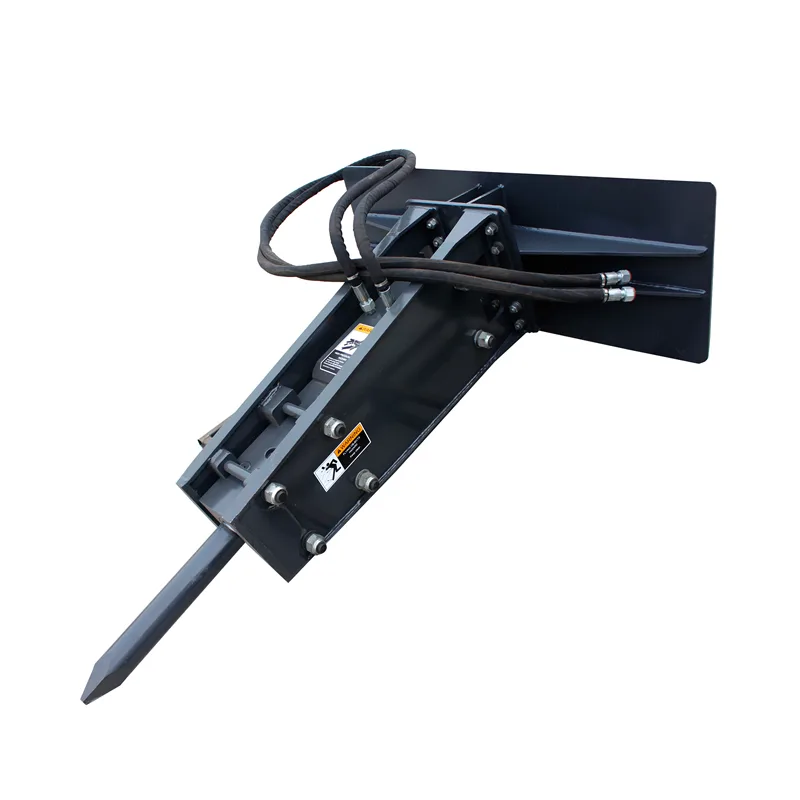

0203 Heavy Duty Series Breaker Hammer

Hydraulic Breaker

Catalogue category: Skid Steer Attachments
Technical specifications and model data on this page
Fitment review available before export quotation

Contact export team

Include machine brand/model, hydraulic flow and pressure (if applicable), quantity and Australian delivery port or inland requirements.

Product

Overview

The 0203 Heavy Duty Series hydraulic breaker range is built for concrete and asphalt breaking on job sites where carrier hydraulic flow and mounting interface must match the tool class.

Multiple models are available (see the specification table). Each model lists suitable machine type, hydraulic flow, operating pressure, tool diameter, weight and impact frequency. Send your machine brand, model and hydraulic data so we can confirm the correct model and mounting before quotation.

Typical applications include municipal road maintenance, construction demolition support, and general breaking work where permitted by local regulations.

Data

Technical Specifications

Main Technical parameters:

Model	020375	020370	020353	020345
Over length （mm）	1200	1200	1200	1200
Over width (mm)	812	809	747	747
Over height (mm)	2036	1692	1493	1431
Drill Rod Diameter （mm）	φ75	φ70	φ53	φ45
Work flow（L/min）	35-65	30-45	25-45	25-40
Work Pressure（bar）	110-160	110-160	110-140	110-140
Frequency（bpm）	500-700	500-800	500-900	500-1000
Nitrogen pressure（Kg/cm²）	14-16	14-16	14-16	14-16
Weight（Kg）	447	341	231	200
Suitable Machine	Excavator	Skid Steer Loader	Skid Steer Loader	Skid Steer Loader

Engineering

Key Features & Benefits

0203 Heavy Duty Series Breaker HammerFactory-built HCN attachment listed under Skid Steer Attachments. Confirm coupler geometry and hydraulic data against the specification table before ordering.
Use caseHydraulic Breaker
Export supportQuotation, fitment review and export packing documentation for Australian and overseas delivery.

Fitment

Machine Compatibility

Carrier fitment by model: The specification table lists Suitable Machine for each 0203 model — for example, model 020375 is listed for excavator carriers; models 020370, 020353 and 020345 are listed for skid steer loader carriers. Confirm mounting interface, hydraulic flow and pressure against your machine data before ordering.

This product is published under Skid Steer Attachments. Mounting interface, carrier size and hydraulic supply must match your machine — use the Technical Specifications table where provided (including any Suitable Machine or carrier row per model).

Catalogue category	What to confirm
Skid Steer Attachments	Machine brand and model; mounting plate or coupler type; hydraulic flow and pressure (L/min, bar) for hydraulic tools; quantity and delivery location.

Jobsite

Applications

Typical uses depend on machine capability and local regulations. Examples for this machine line:

06 — Programs

OEM & Custom Options

HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.

Dimensions & capacity Custom width, working depth, capacity, and duty configuration for your market.
Mounting interface Quick-attach plates, coupler geometry, and pin dimensions matched to machine data.
Hydraulic setup Standard-flow / high-flow options and circuit layout confirmed before production.
Private label Color, logo, nameplate, and export packaging for OEM and distributor brands.
After-sales kits Wear parts and spare kits for dealer stock and field service support.
Export packing Steel frame or crate packing prepared for container loading and destination handling.

Share annual volume, destination country, and branding requirements for a manufacturing proposal.

20+Years manufacturing attachments
400+Attachment models in portfolio
21,000㎡Modern production facility
CE / ISOQuality systems for export markets

07 — Buying

FAQ

What machines is 0203 Heavy Duty Series Breaker Hammer compatible with?

Send machine brand, exact model, operating weight, and hydraulic flow/pressure for 0203 Heavy Duty Series Breaker Hammer. We confirm the mounting interface and recommend the correct configuration before quotation.

What information do you need for an accurate quote on 0203 Heavy Duty Series Breaker Hammer?

Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.

What hydraulic flow does 0203 Heavy Duty Series Breaker Hammer require?

Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.

Can 0203 Heavy Duty Series Breaker Hammer mounting and branding be customized?

Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.

How fast can I get a quotation for 0203 Heavy Duty Series Breaker Hammer?

Click Request A Quote, email shinzhang@hcnatta.com.au, or call +61 416451515. Complete inquiries are usually answered within 1 business day.

B2B Inquiry

Request A Quote for 0203 Heavy Duty Series Breaker Hammer

Share machine model, hydraulic data, quantity, and destination country. Our export team typically replies within 1 business day.

Contact Export Team →
