Product

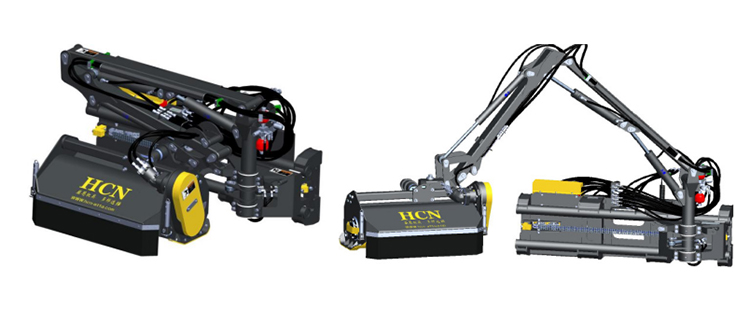

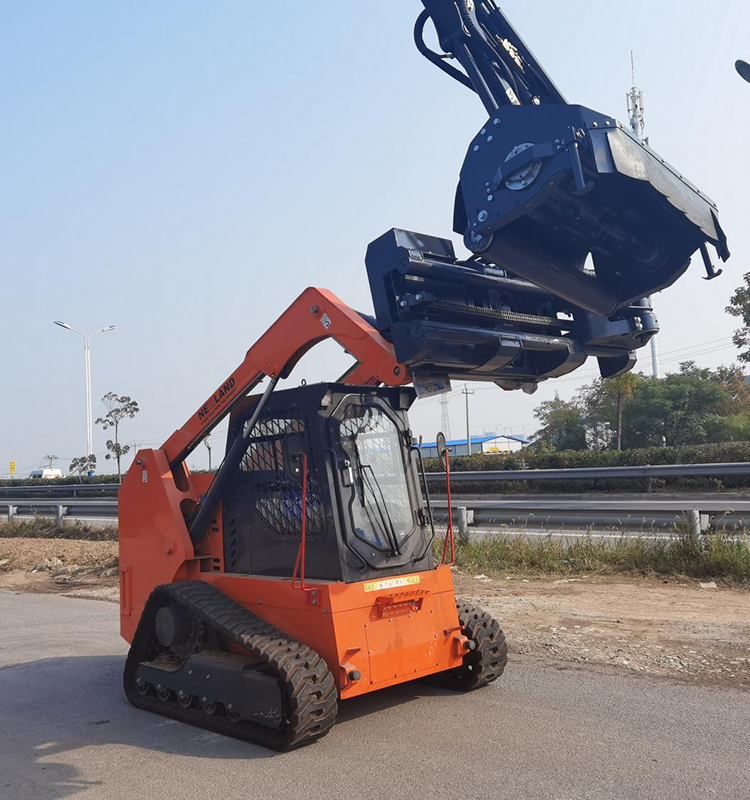

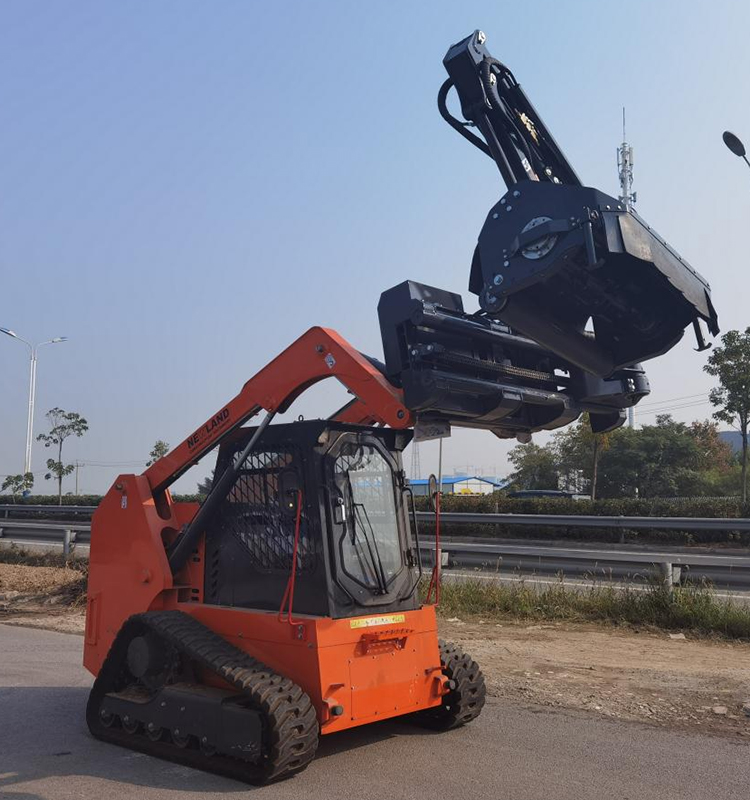

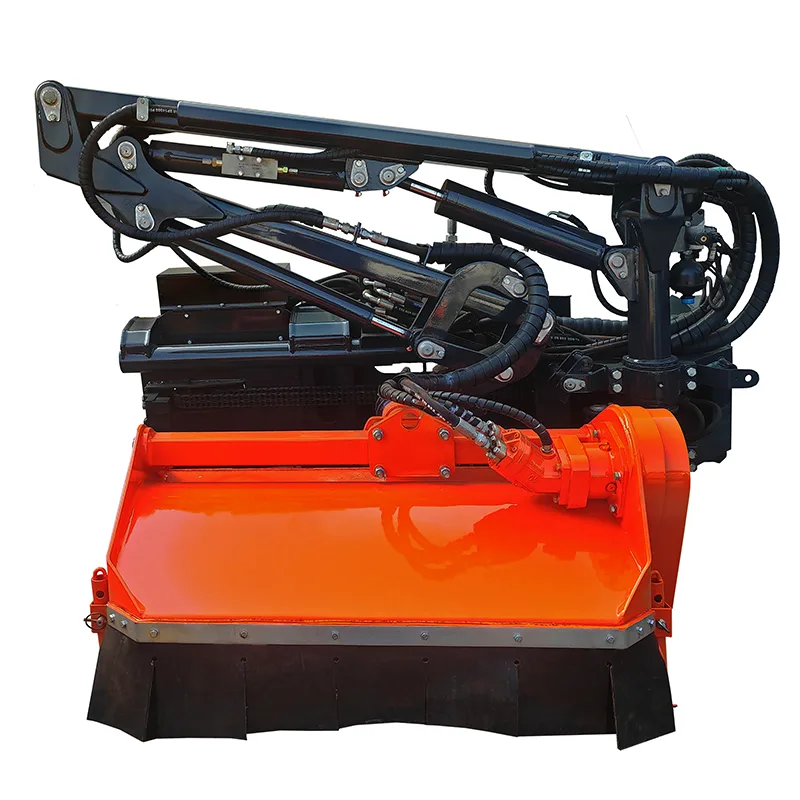

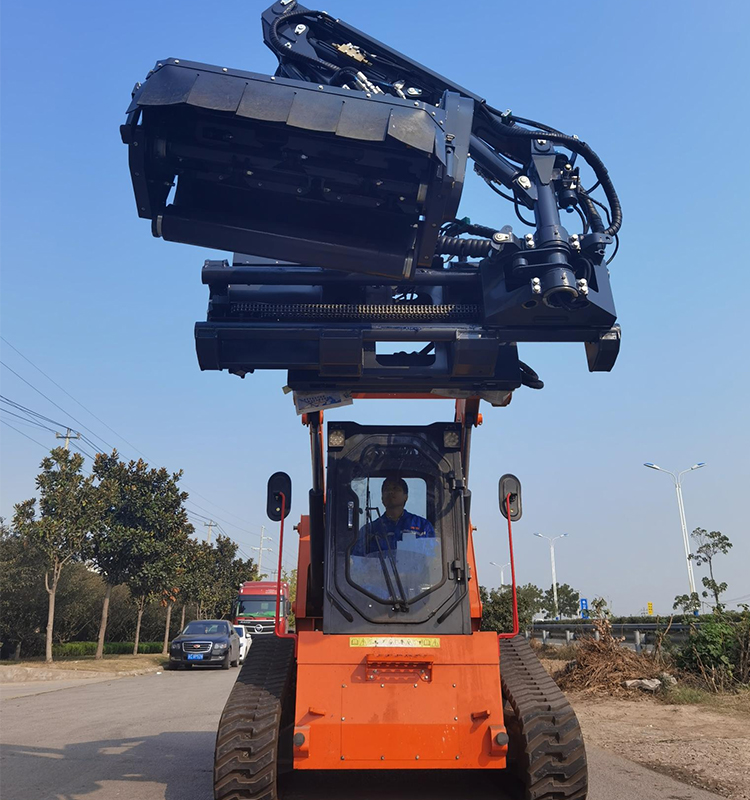

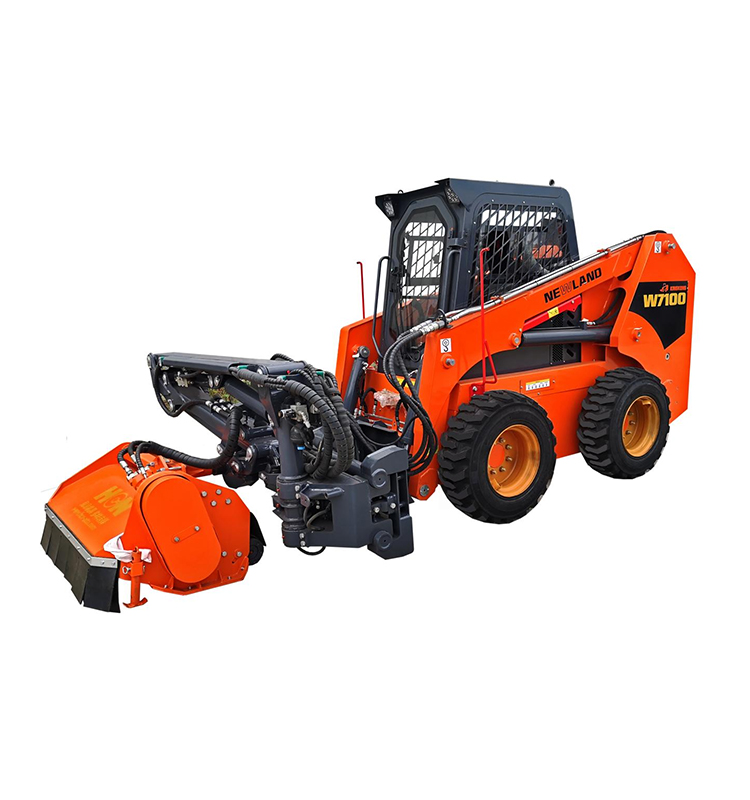

Boom mowers for skid steer loaders
HCN manufactures and sells high-quality boom mowers that can be mounted on Skid steer Loaders. The utilization of the boom mowers is quite diverse as it can be used for grass mowing, hedge cutting, tree trimming, ditch cleaning and weed brushing. It is easy to change attachments tools on the boom mower arm by using the specially developed quick release systems and with 5 mower head options.
The HCN reach mowers are designed for professional users, such as landscape gardeners, agricultural contractors, forest workers and municipalities. It is important that our machines are made of the best available materials so you can focus on doing the task at hand in an efficient manner.
The control of the boom mower is easy and intuitive to get started with and we offer optional equipment to relieve the driver even more, such as the Auto Height Control which automatically adjust the mowing head to the terrain and the Rotor Flex which allows you to move the attachment tool forward into your field of vision, so you do not have to strain your neck by looking backwards.
Data

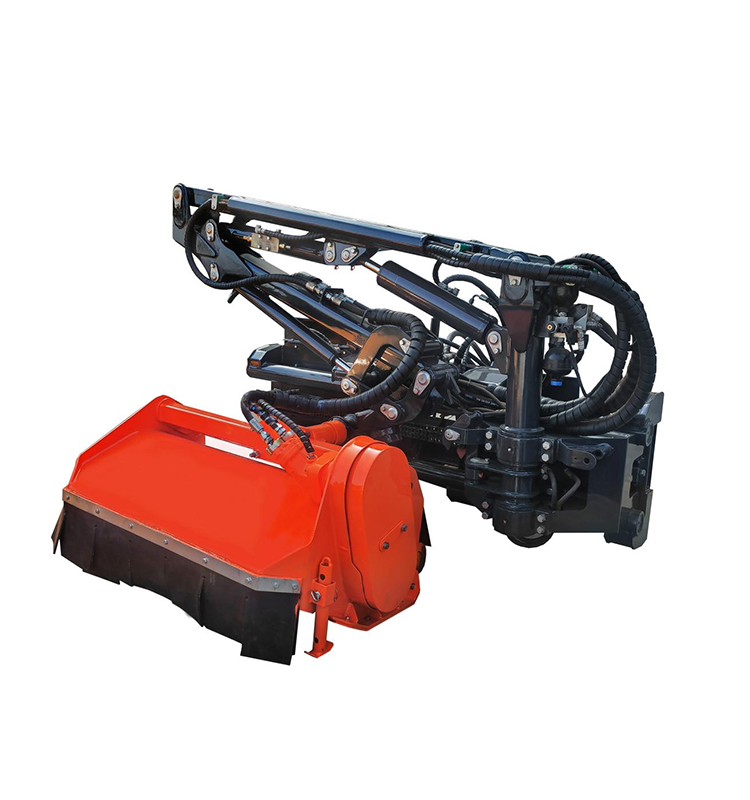

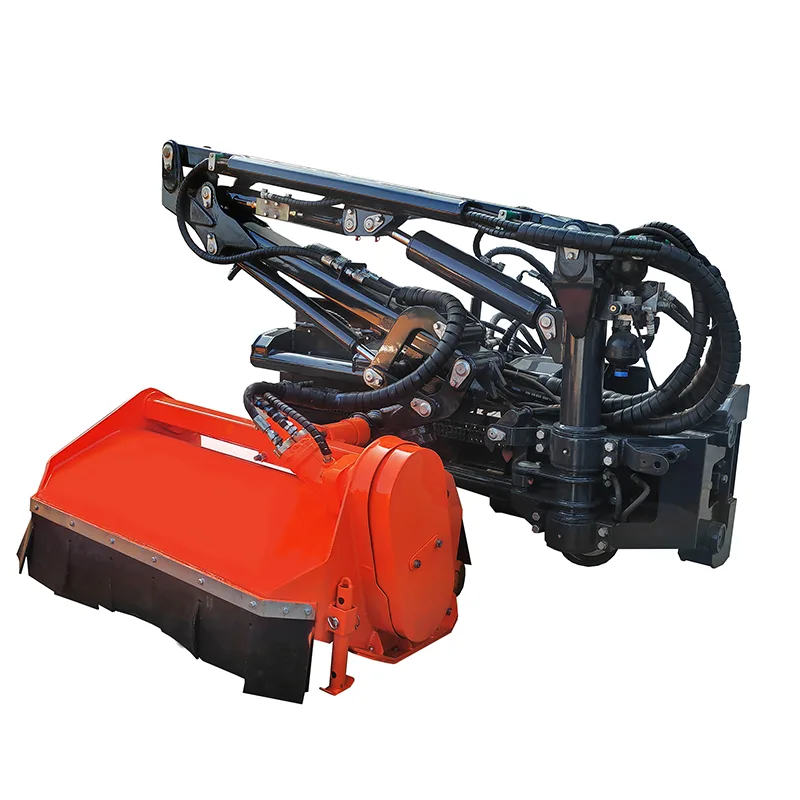

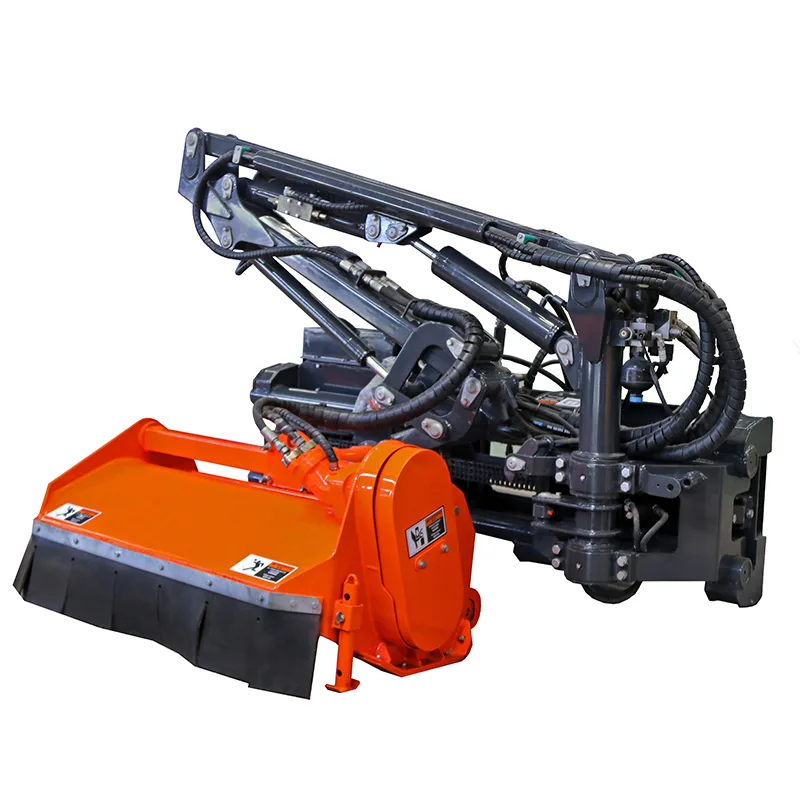

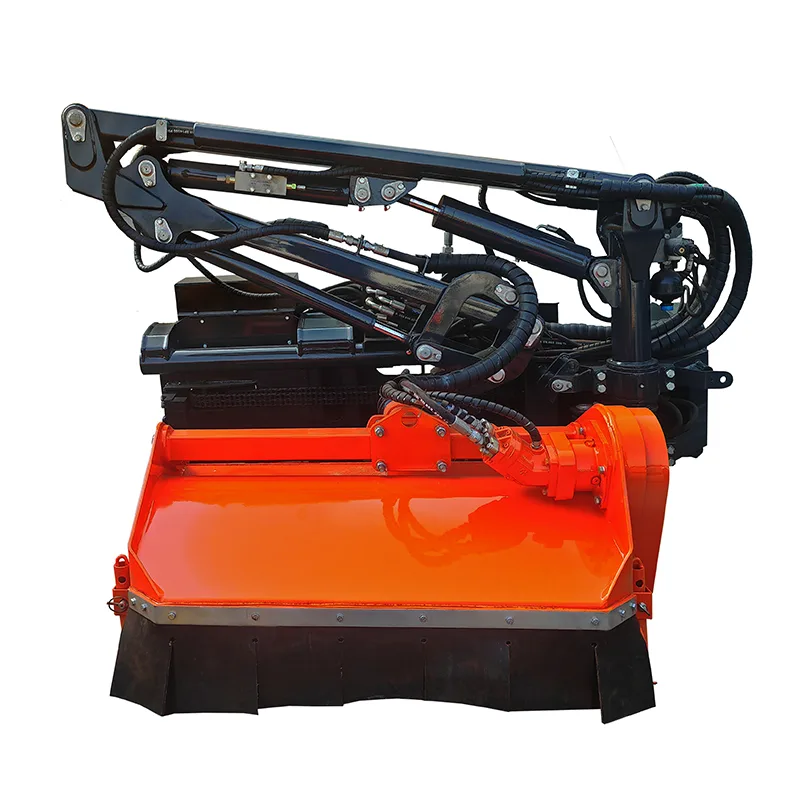

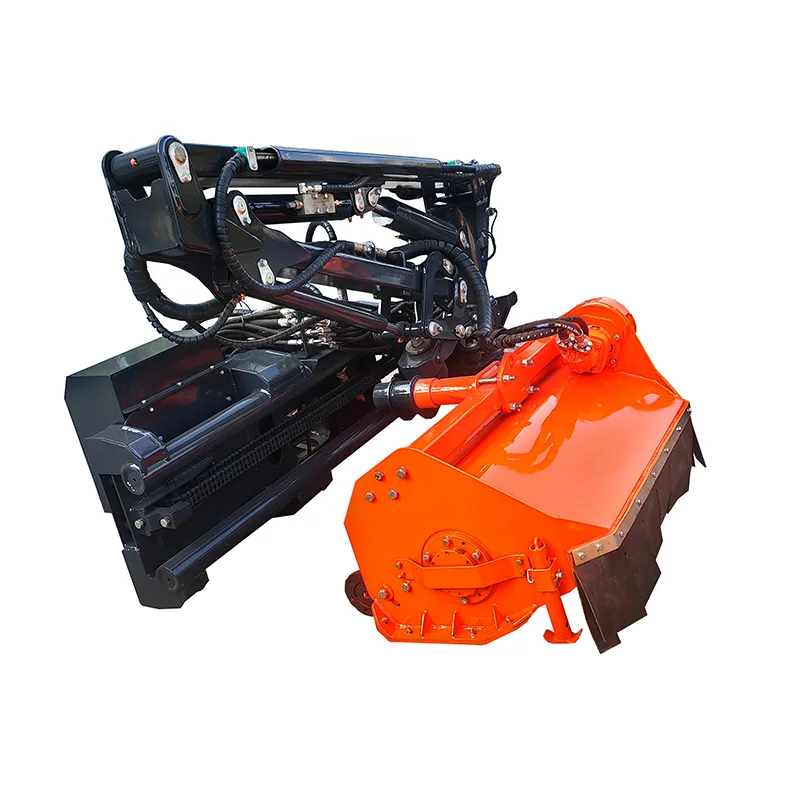

1. Photos
Main specification
Main Specification | |
Model | 052840 |
Overall length (mm)(Transportation size) | 1530 |
Overall width (mm)(Transportation size) | 2000 |
Overall height (mm)(Transportation size) | 1400 |
Weight (kg) | 875 |
Trimming width (mm) | 1000 |
Horizontal angle of deflection (°) | 30° |
Horizontal displacement (mm) | 1320 |
Max. trimming radius (mm)(Host machine is not included) | 4600 |
Max. working pressure (Mpa) | 21 |
Working speed (km/h) | <6 |
Required hydraulic flow (L/Min) | 75-100 |
Working Voltage (V) | DC12/24 |
Suitable machine | Vehicle/high-power skid steer loader |
Feature
1. It is suitable for greening and trimming operation of river weed slope land and highway green belt; it is an ideal tool for municipal afforesting and urban landscaping.
2. It adopts multi-joint design for the two arms, which can allow the operator to achieve flexible control and allow the product to span a variety of guardrails for long-distance trimming operation;
3. The width of slope trimming is one meter; the product adopts replaceable flail design.
4. It can be used in different working conditions as it has side shift function for a wider range of trimming.
5. It adopts electric proportional load sensitive control system, flexible and reliable operation, improve work efficiency and safety.
6. Adopted a deflection function, it can be deflected by 30°, which increases the applicability of the product.
7. The boom can be stretched up to 4.6 meters, and the slope can be trimmed within this range.
8. The arms and the tipping bucket can be retracted during transportation to reduce the transportation space.
9. The product has a spiral adjustment function to allow the operator change the angle at will.
10. With roller adjustment device, the height of trimming weed can be adjusted in time.
11. The inclined axis type quantitative plunger motor has the characteristics of compact structure, high efficiency and good pressure resistance, which increases the service life of the product.
12. Conical sleeve pulley has the characteristics of simple structure, convenient disassembly and assembly, stable transmission, and it also has the capacities of buffer damping and noise reducing.
13. The product doesn’t need lubrication to reduce maintenance cost.
14. Equipped with shock absorption and floating function, the product can reduce the impact and protect the working device from damage.

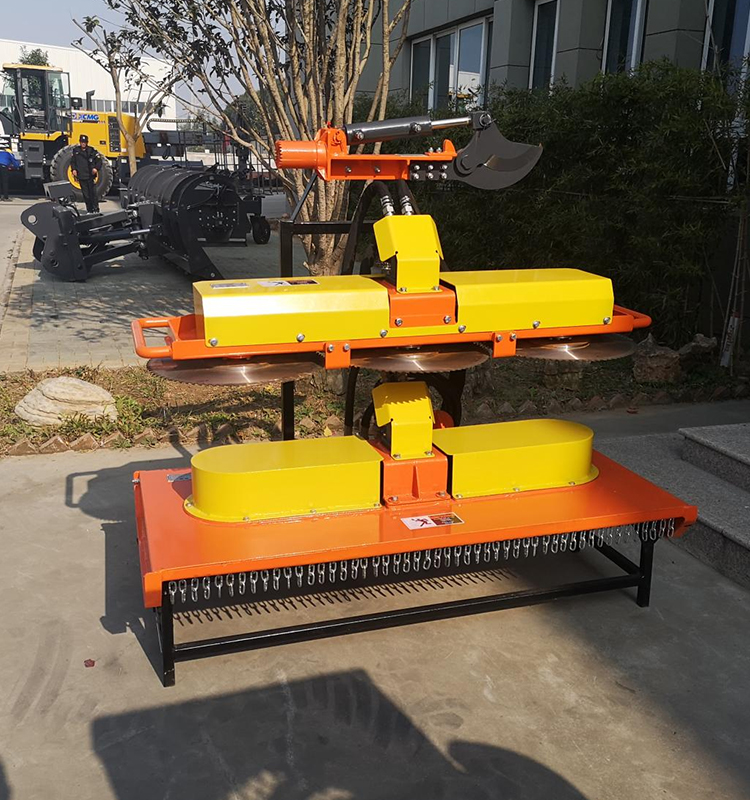

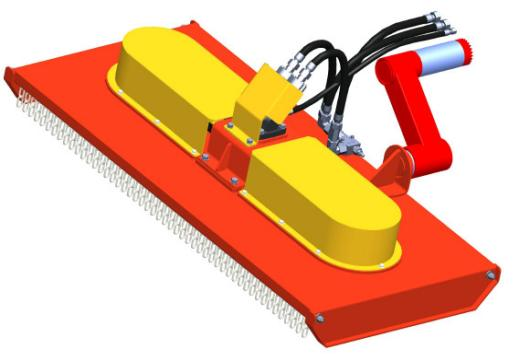

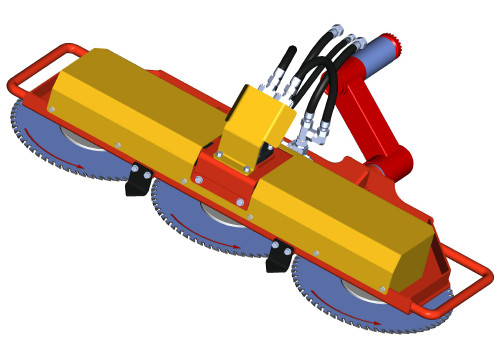

Other optional trimming tools
model | 052660 | 053060 | 053160 | 053206 |

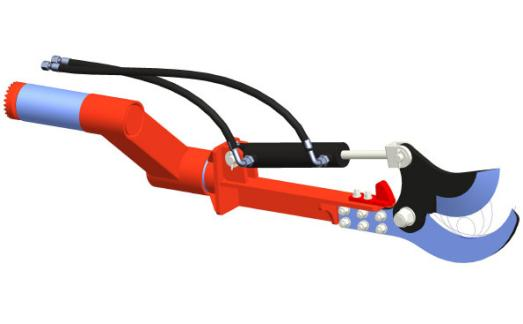

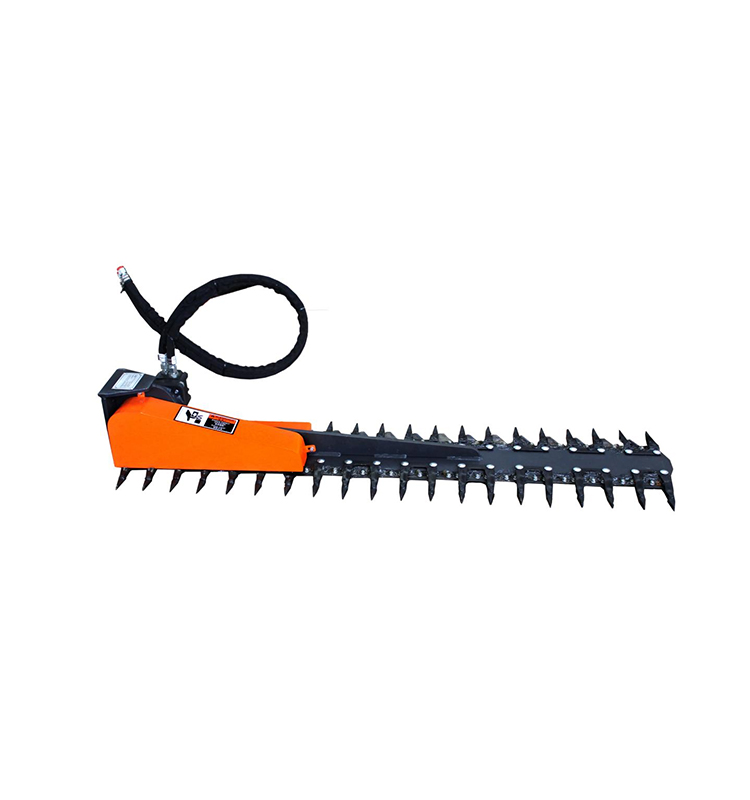

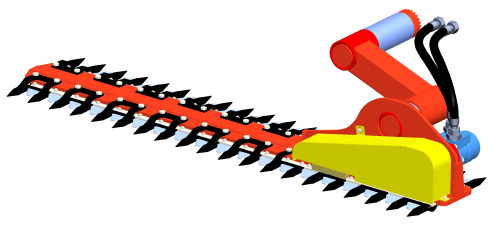

Name | Limb Circular Saw | Rotary brush Cutter | Double-edged HedgerowTrimmer | Gardening Scissor |
PIC |
|
|
|
|
Length（mm） | 990 | 1161 | 660 | 1200 |
Width (mm) | 1570 | 1594 | 1535 | 325 |
Height (mm) | 465 | 480 | 332 | 317 |
Work width（mm） | 1500 | 1500 | 1500 | |
Weight（Kg） | 170 | 180 | 88 | 40 |
Saw disc diameter (mm) | φ500 | |||
Maximum cutting diameter（mm） | φ125 | φ20 | φ20 | ≤φ150 |
Work flow（L/Min） | 60-70 | 60-70 | 60-70 | |
Work pressure（MPa） | 20 | 20 | 20 | 20 |
Suitable for machine | Manipulator BOOM | Manipulator BOOM | Manipulator BOOM | Manipulator BOOM |
Engineering
Fitment
This product is published under Backhoe Loader Attachments. Mounting interface, carrier size and hydraulic supply must match your machine — use the Technical Specifications table where provided (including any Suitable Machine or carrier row per model).
| Catalogue category | What to confirm |
|---|---|
| Backhoe Loader Attachments | Machine brand and model; mounting plate or coupler type; hydraulic flow and pressure (L/min, bar) for hydraulic tools; quantity and delivery location. |
Jobsite
Typical uses depend on machine capability and local regulations. Examples for this machine line:
06 — Programs
HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.
Share annual volume, destination country, and branding requirements for a manufacturing proposal.
07 — Buying
Send machine brand, exact model, operating weight, and hydraulic flow/pressure for 052840 Boom Mower. We confirm the mounting interface and recommend the correct configuration before quotation.
Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.
Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.
Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.
Click Request A Quote, email shinzhang@hcnatta.com.au, or call +61 416451515. Complete inquiries are usually answered within 1 business day.
B2B Inquiry
Share machine model, hydraulic data, quantity, and destination country. Our export team typically replies within 1 business day.
More models
Backhoe Loader Attachments

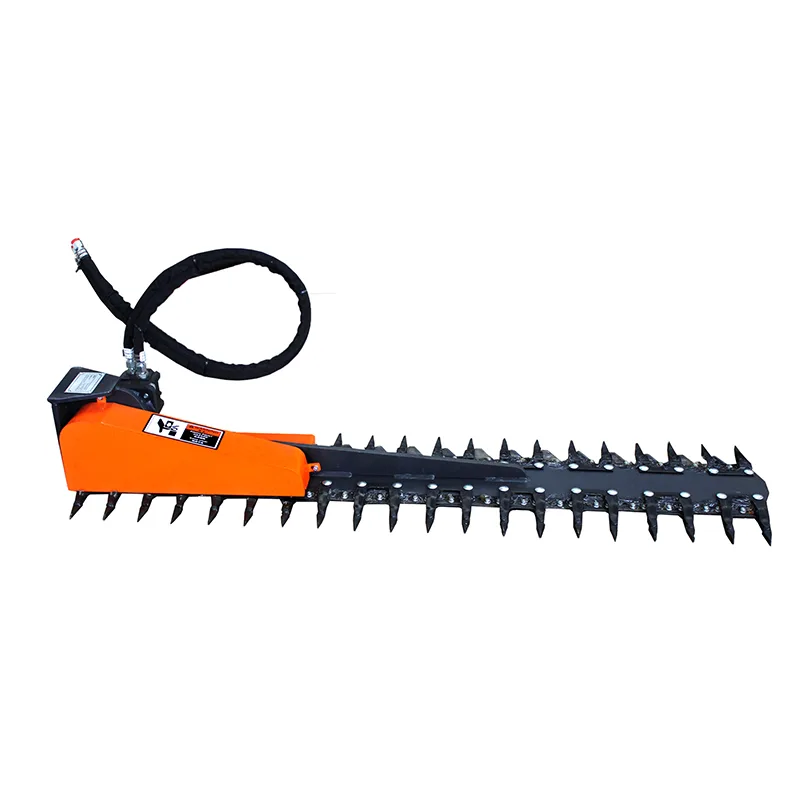

052840 Boom Mower
Vegetation Management
View Product
Backhoe Loader Attachments

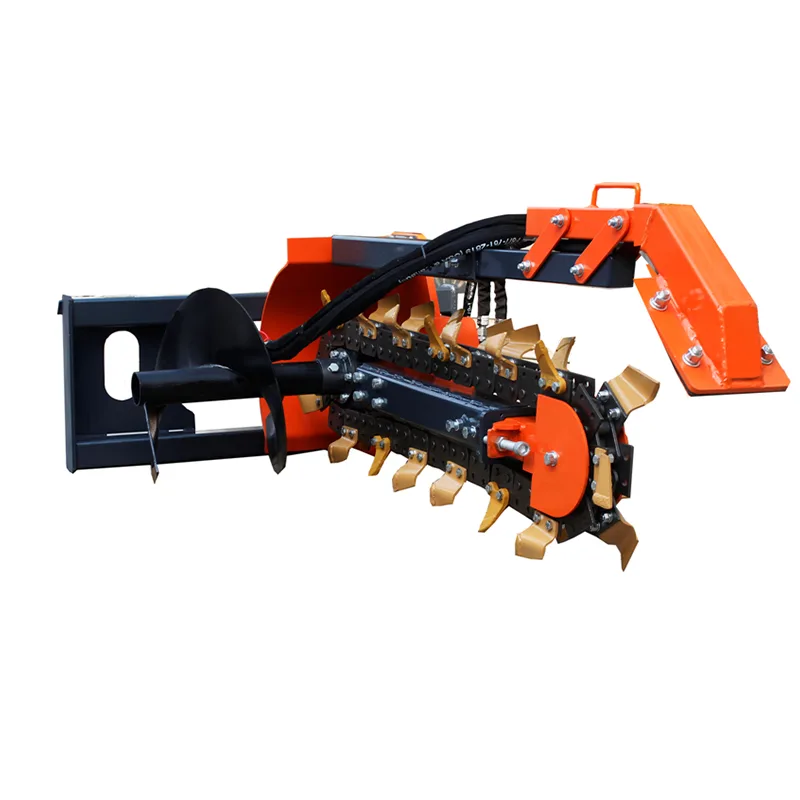

0207 Series Heavy Duty Trencher Attachment
Trenching & Utility Work
View Product
Backhoe Loader Attachments

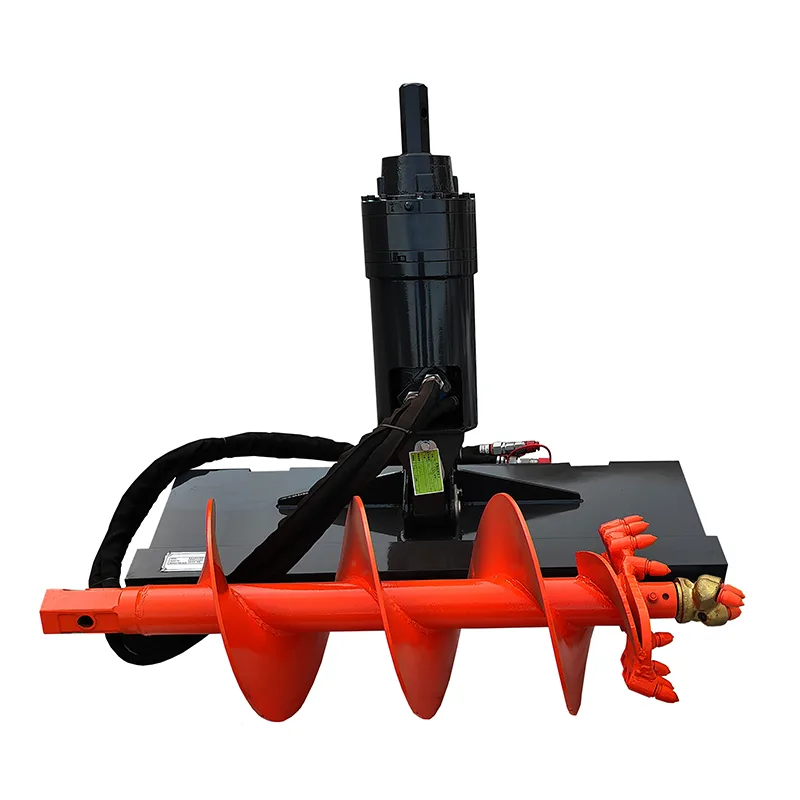

0510 Earth Auger
Drilling & Digging
View Product
Backhoe Loader Attachments

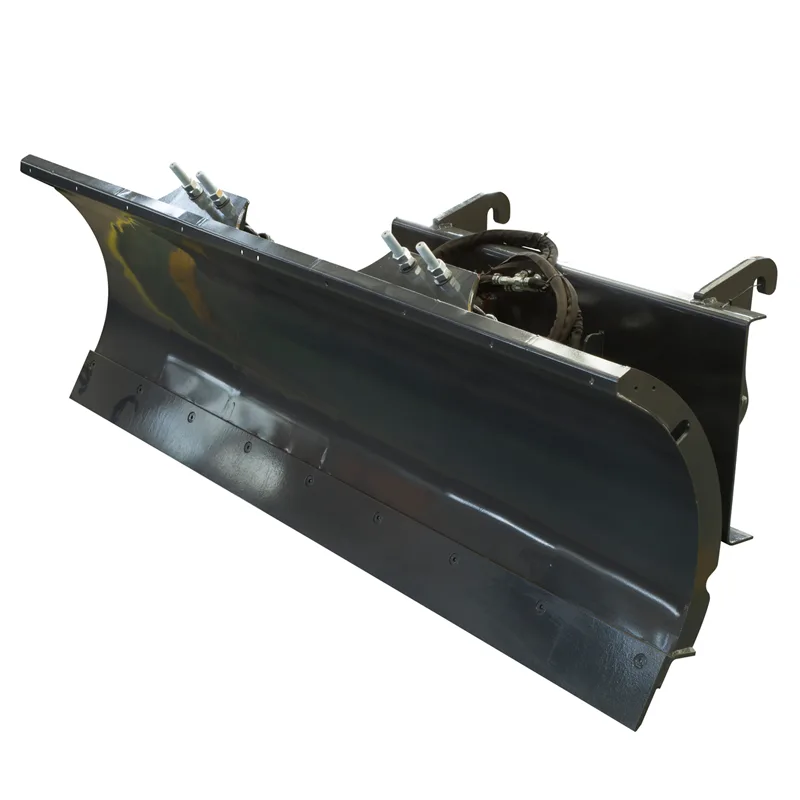

0208I Snow Blade
Snow Clearing
View Product
Backhoe Loader Attachments

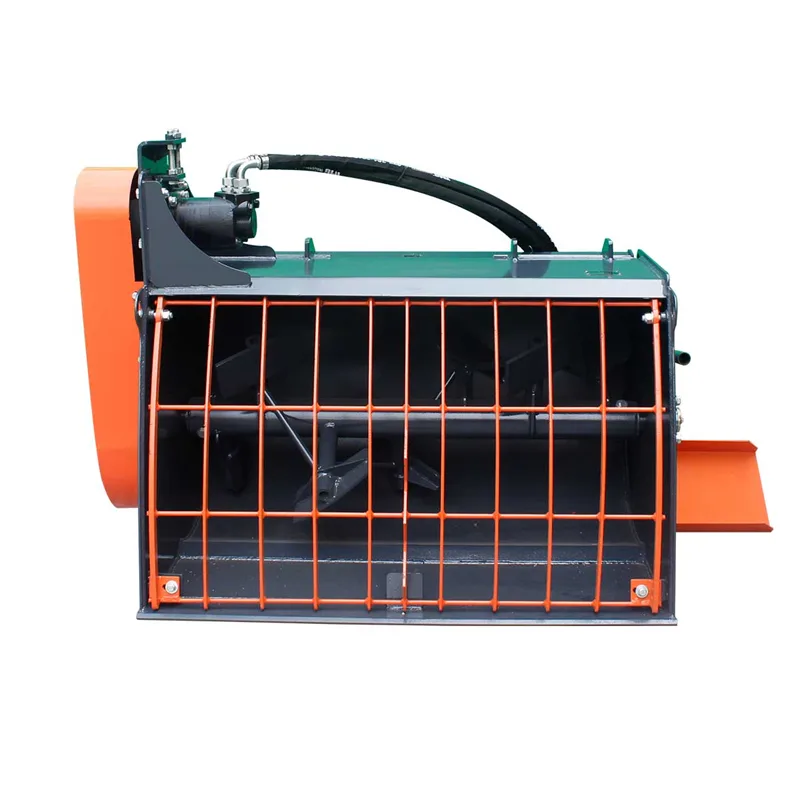

0310 Concrete Bucket
