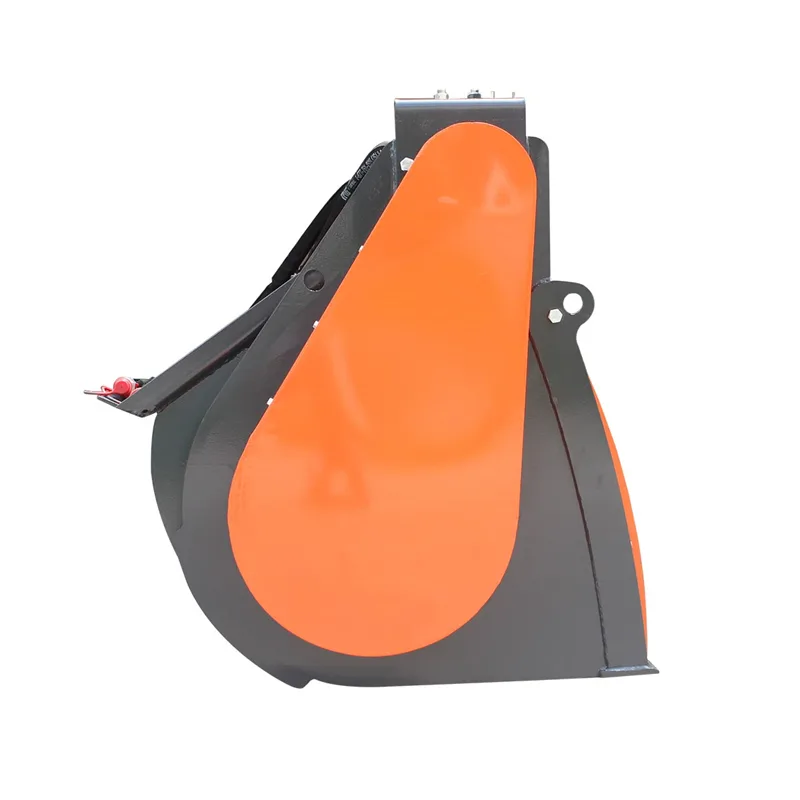

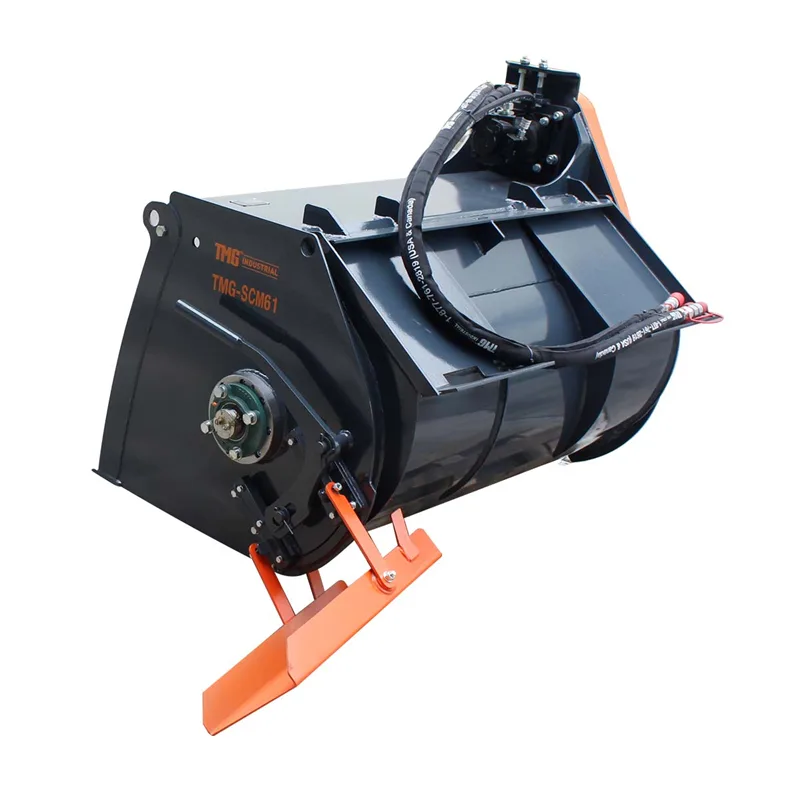

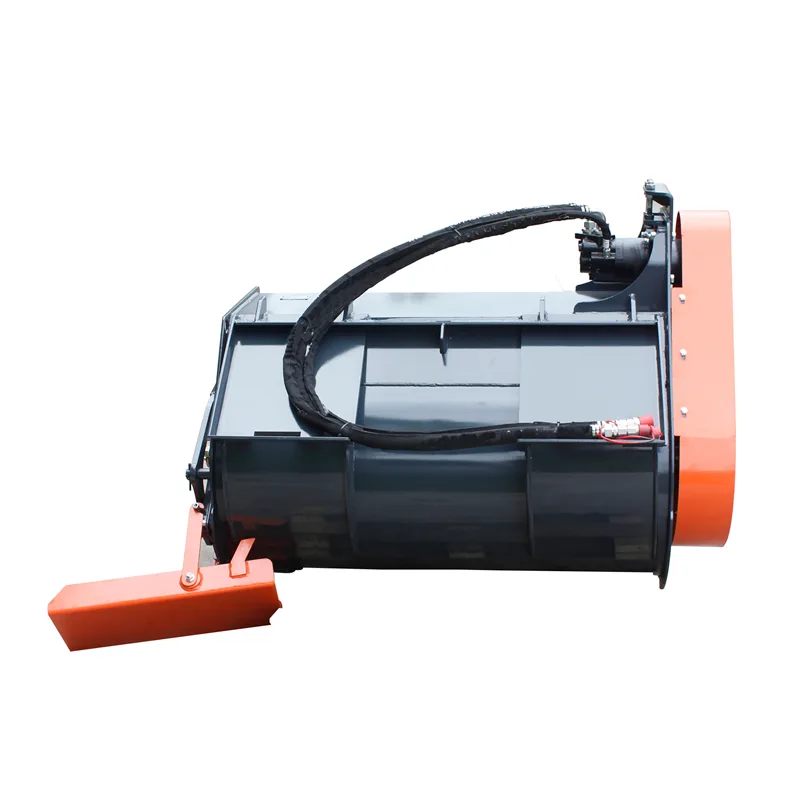

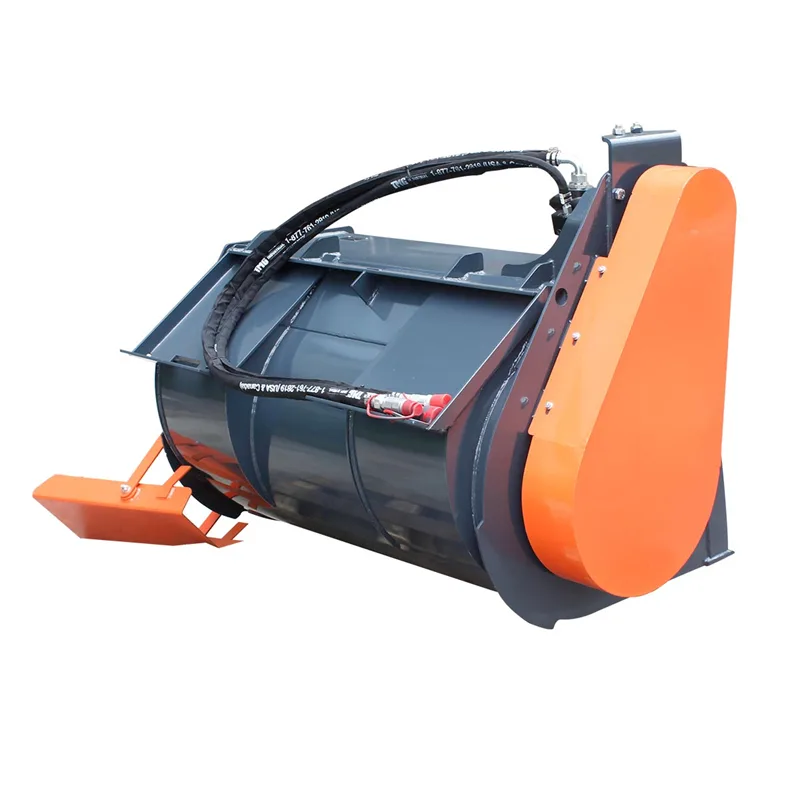

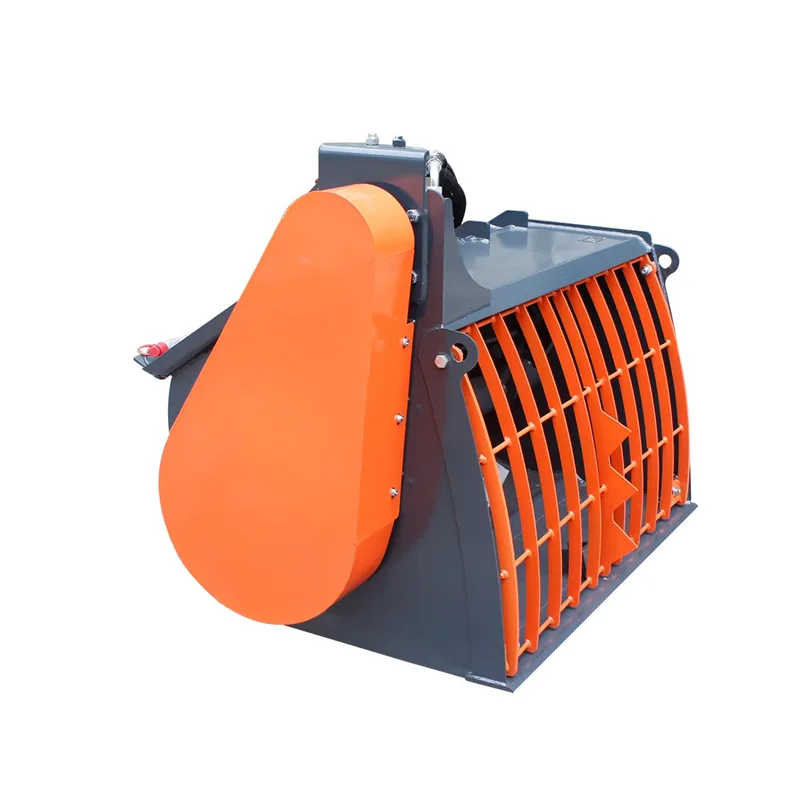

0310 Concrete Bucket

Features:

· Efficient mixing concrete right at the pour site

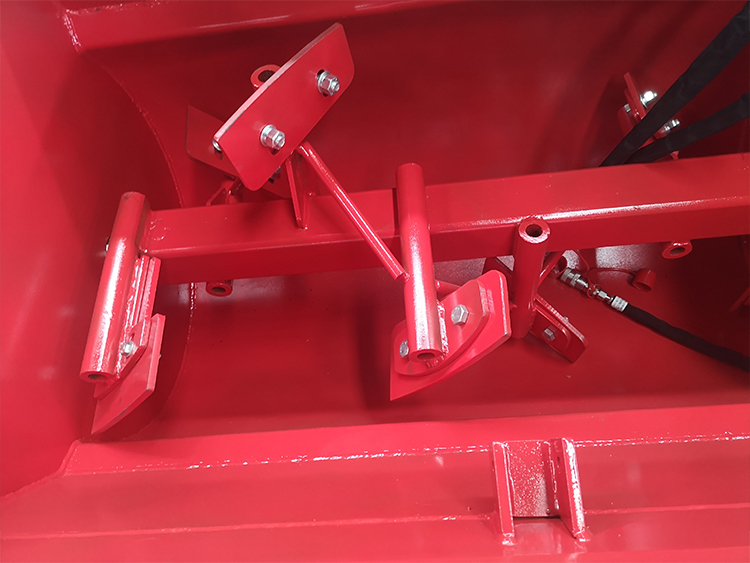

· BOLT-ON REPLACEABLE AUGER PADDLES

· 3-in-1 efficient mode: scoop up, mix it on the go and dispense

· Reversible revolving paddles for optimized mixing & pouring

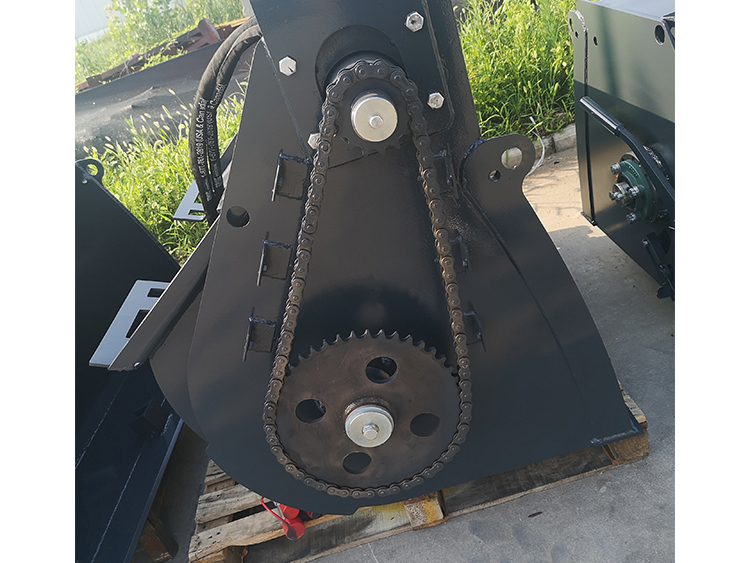

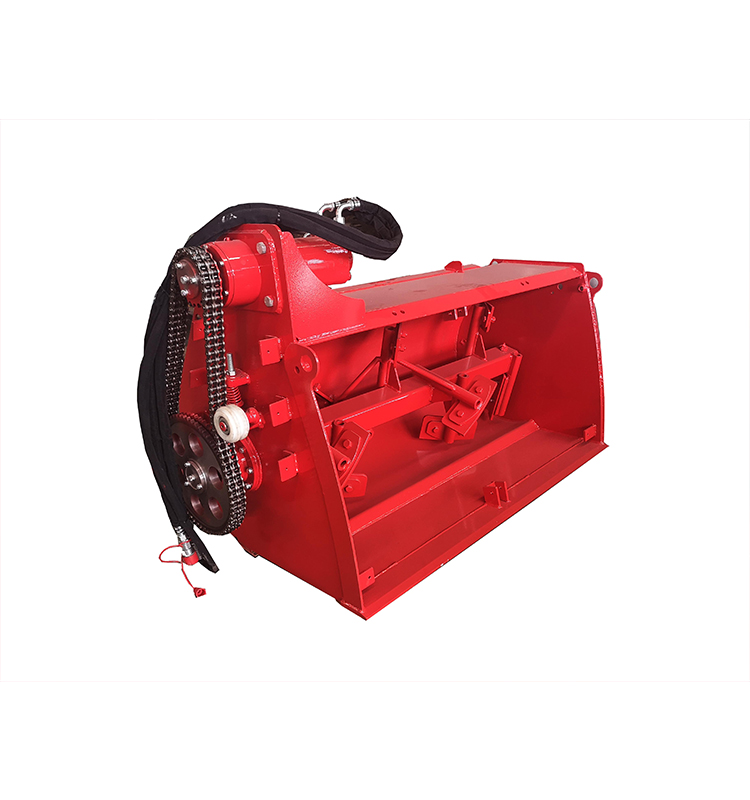

· Chain and sprocket drive hydraulic motor

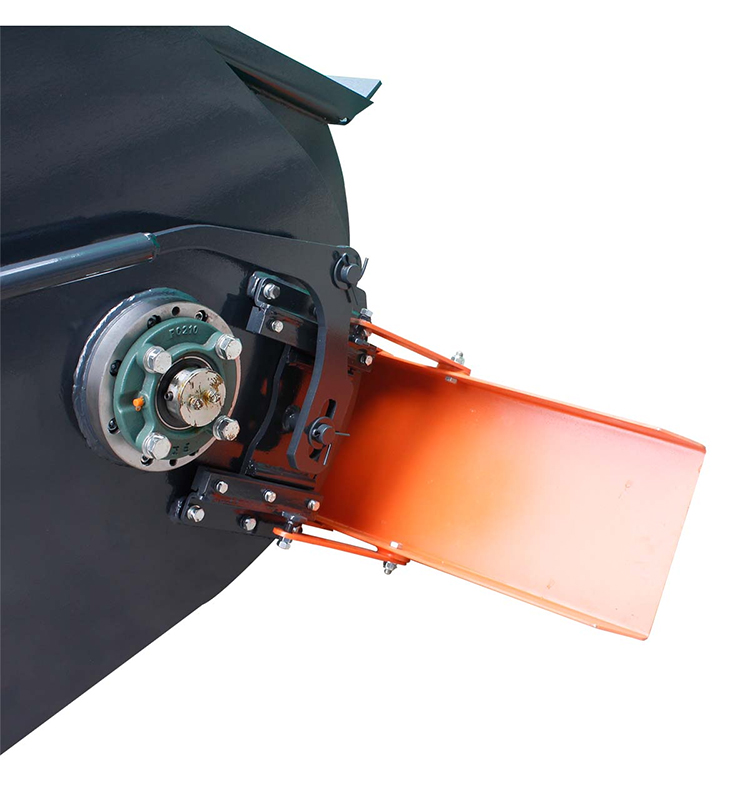

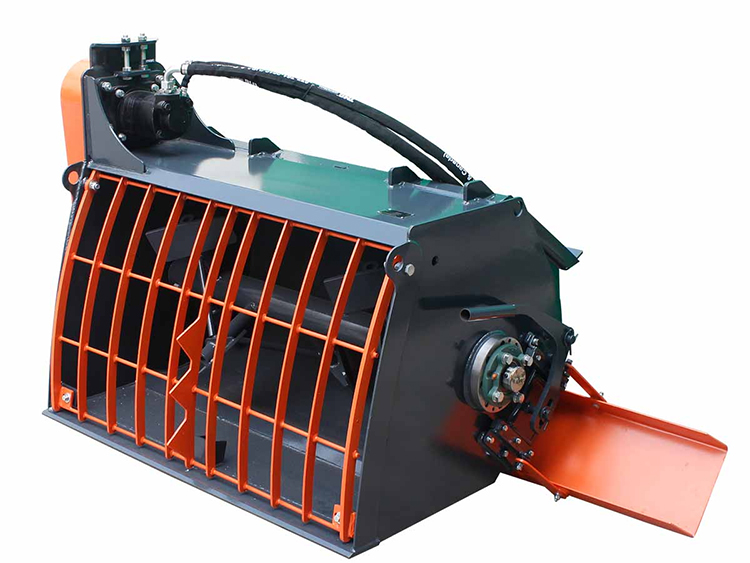

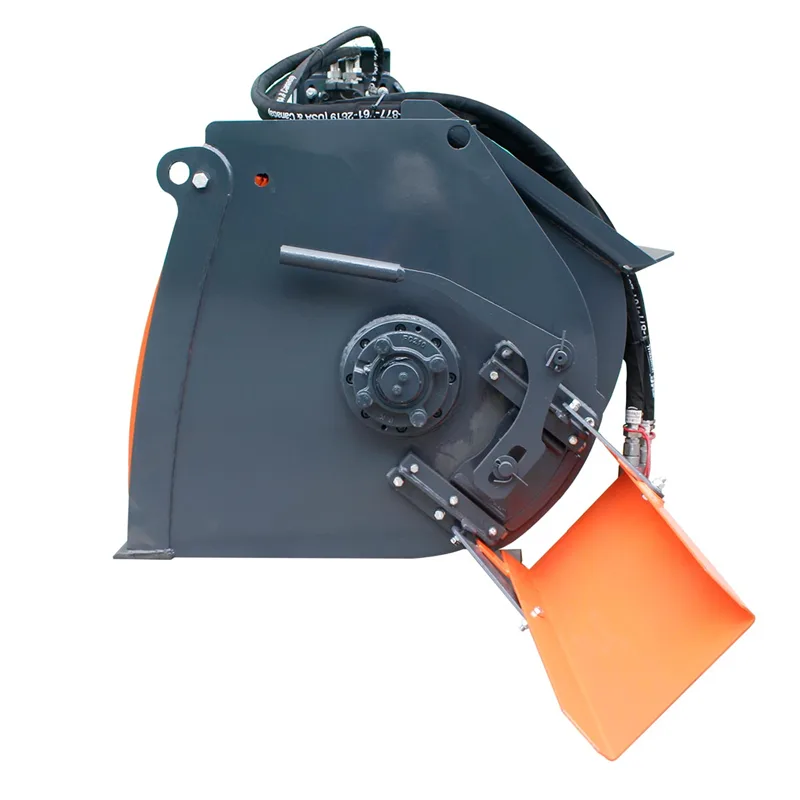

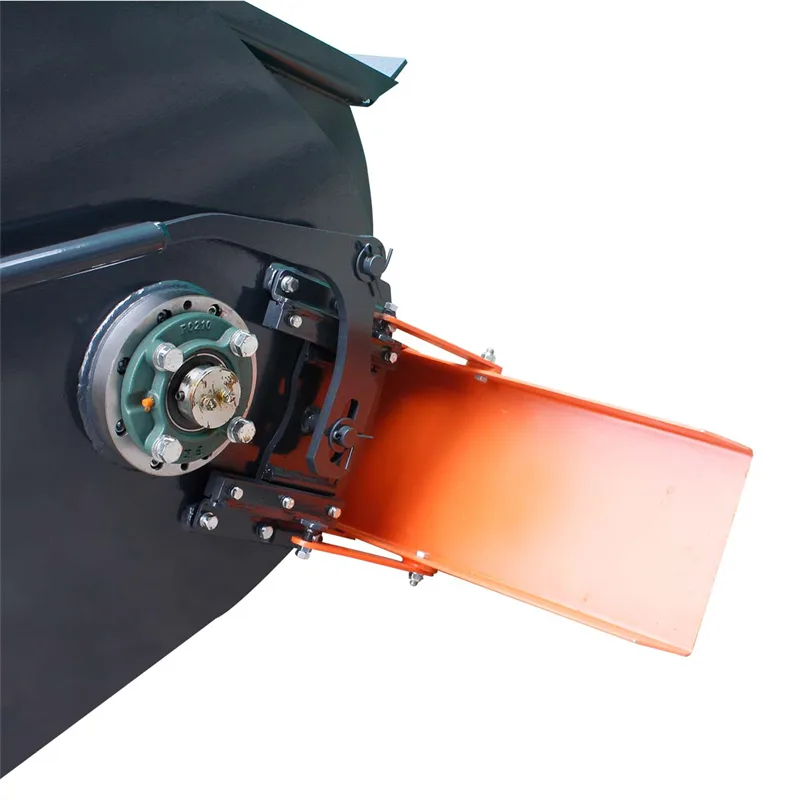

· Manual side chute provides accurate dispensing

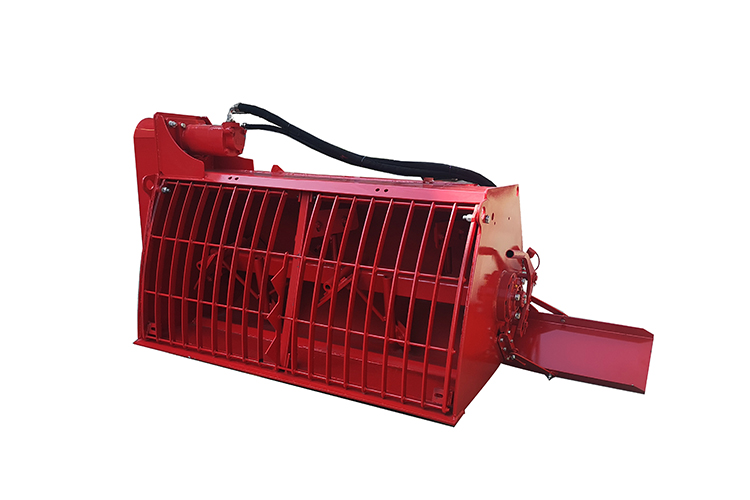

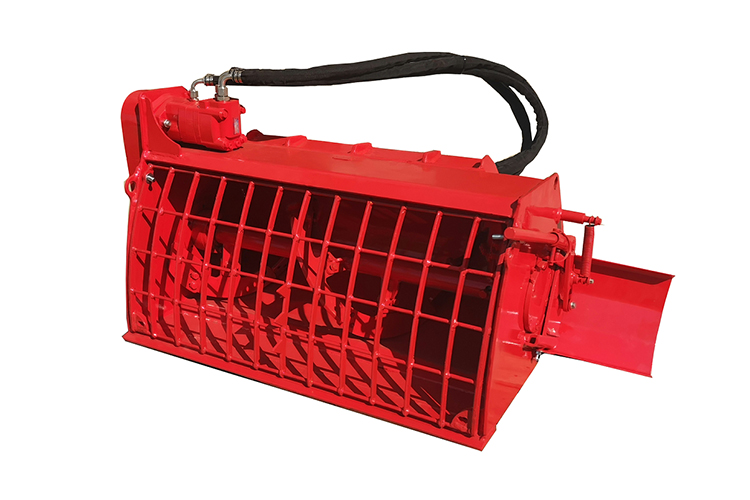

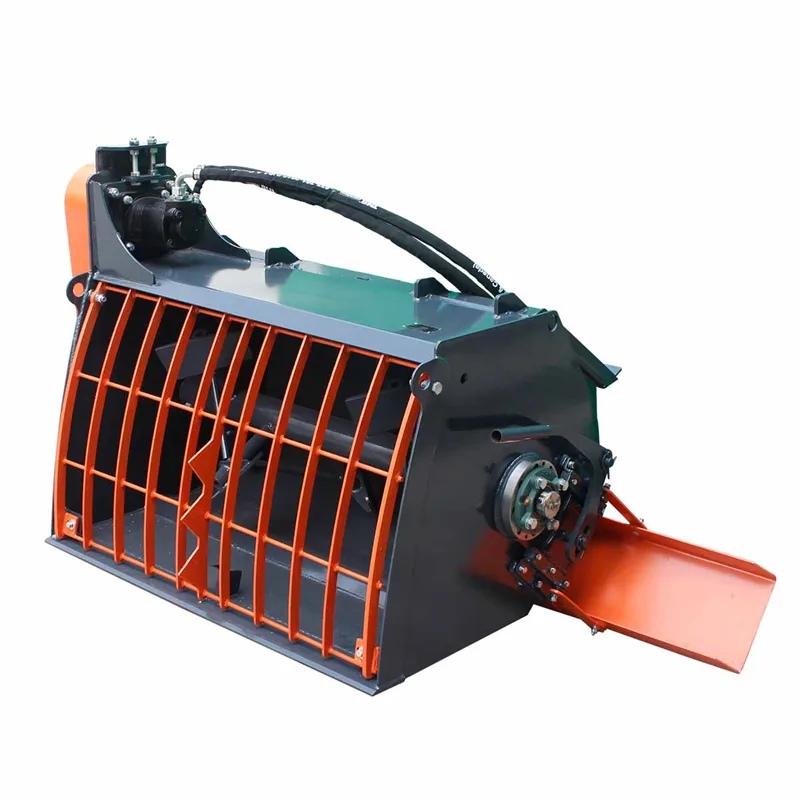

· Removable steel grate with bag splitters

· Universal mix skid steer mount

· Hoses and 1/2” flat-faced couplers included

· Hose protective cloth wrapping

· Specifications:

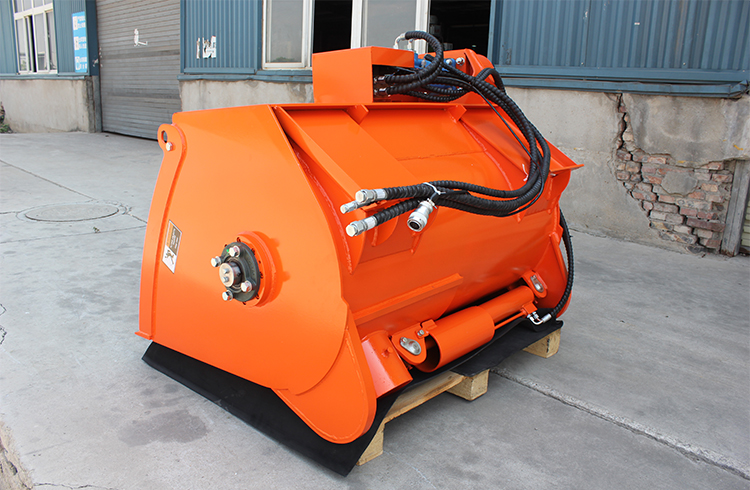

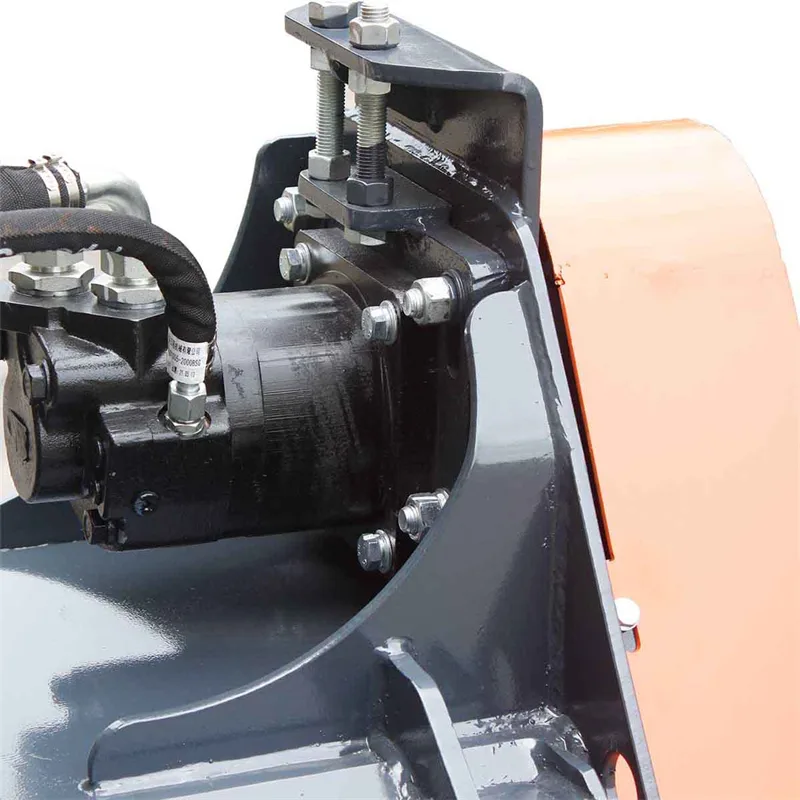

Use heavy type wheel-side motor. The axial and radial force increases to make the mixing materials more uniformed. The upgraded motor is connected with the mixing shaft by bridge mechanism, to prevent cement from entering the bearing seat, fully protect the bearing seat, more than twice life time compared with other similar products in the market.

·  Enlarge the space of grids. More convenient and easier to use for shoveling and discharging, has solved the grids stained with cement during working, and the low efficiency of feeding and discharging.

· ⑶ Use 40Cr steel plate with hard process make sure the gear three times life time than the ordinary factory manufacture.

· Assembled size: 73’’(L) x 53’’(W) x 49’’(H)

· Capacity:  16 cu.ft

· Hopper width: 60’’

· Hopper depth: 25’’

· Flow rating: 16 - 21 GPM

· Max. pressure: 3050 psi

· Max. aggregate size: 3/4'' at 25% mix ratio or less

Packaging:

· Dimensions: 66” x 55” x 43”

· Shipping weight: 1300 lb

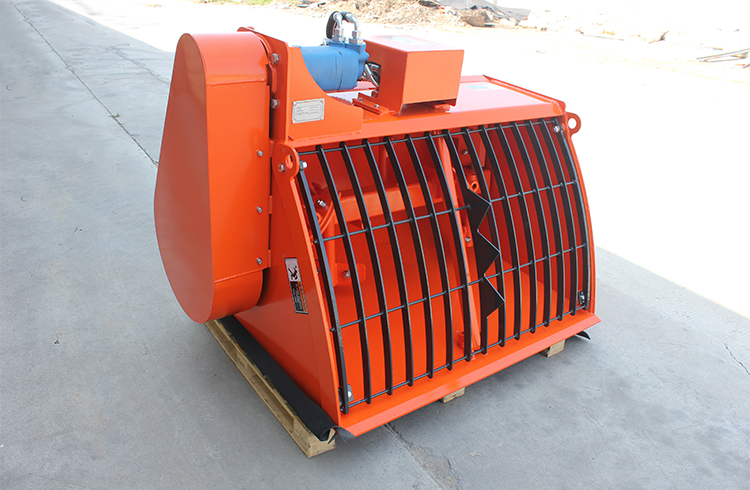

0310 Series  Mixer Bucket

Use NM400 cutting edge plate nearly same as hardox steel plate

0310B

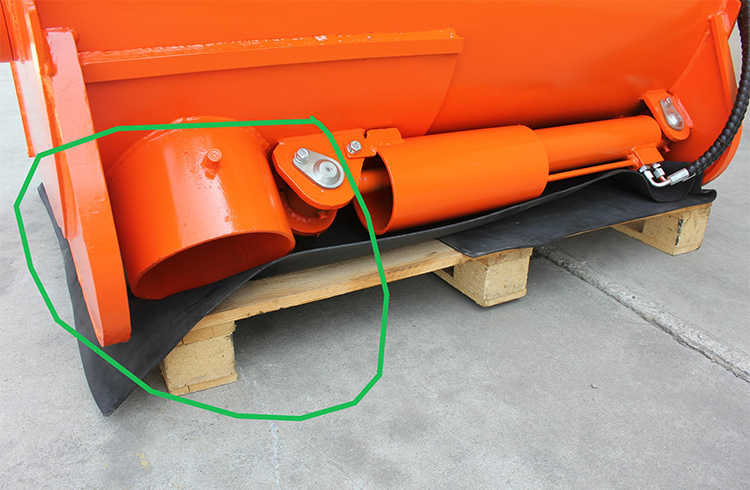

Automatic controlled bottom unloading，specially designed for excavator.

Detachable paddle blade design; Rubber paddle optional; specially design for mix cement grout and stucco.
