HCN Australia

Backhoe Loader Attachments

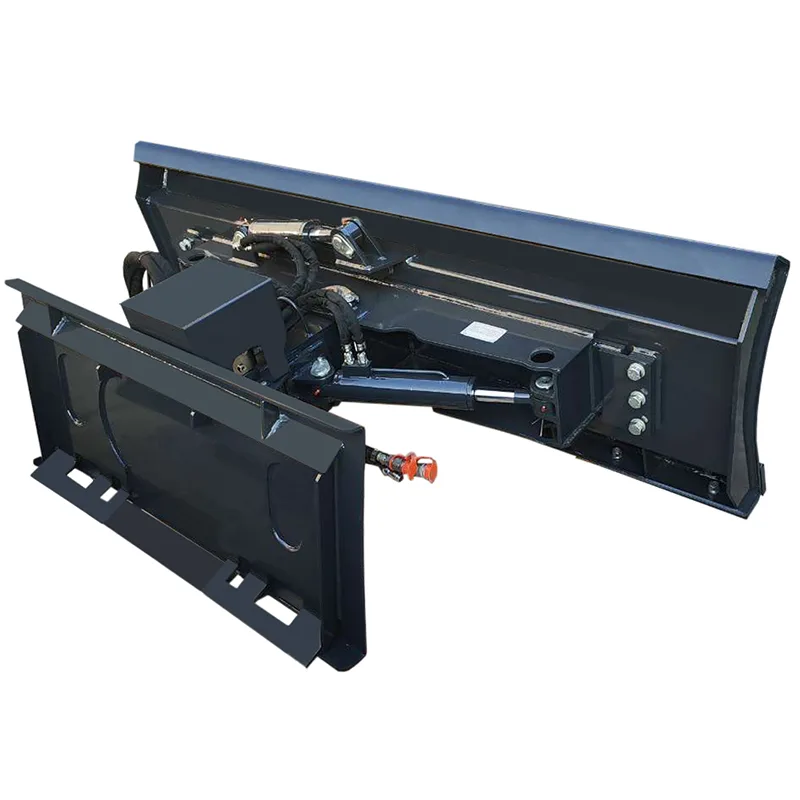

0309 Series Dozer Blade

Grading & Leveling

Catalogue category: Backhoe Loader Attachments
Technical specifications and model data on this page
Fitment review available before export quotation

Contact export team

Include machine brand/model, hydraulic flow and pressure (if applicable), quantity and Australian delivery port or inland requirements.

Product

Overview

1Skid Steer Dozer Blade is one of the most common earth moving attachments, effectively turning your skid steer into a dozer machine. Dozer Blades allow you to move dirt, backfill, grade, and impose your will on the landscape with your skid steer. You'll find various styles including 4 way and 6 way angle blades in several sizes and brands below.

2.Our assortment of blades meet the high performance standards that are needed in today's competitive market. Each blade design has been tested to see that productivity and durability is the number one reason you will want purchase one of our blades.

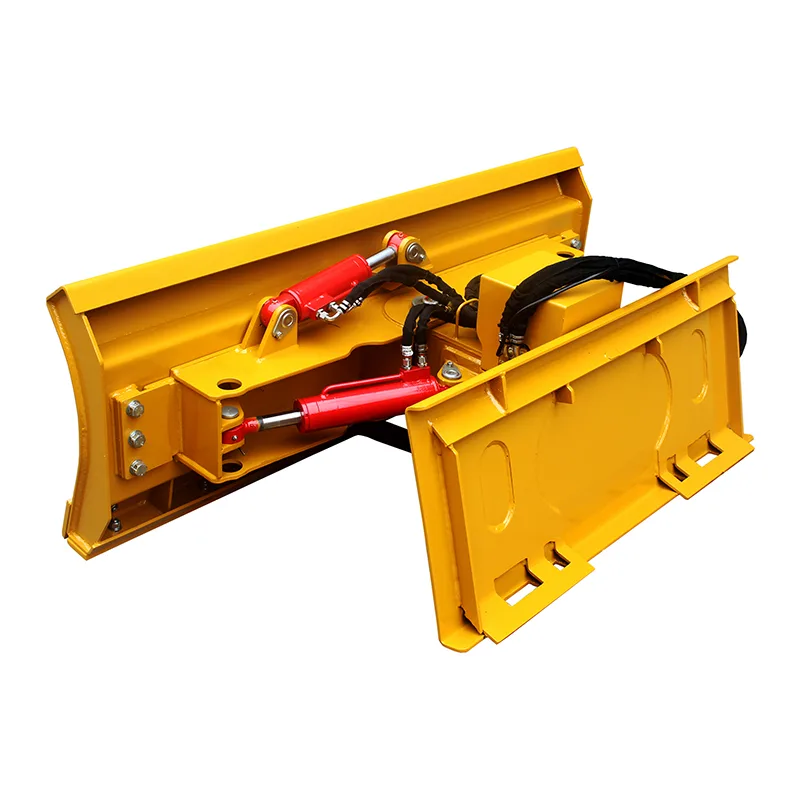

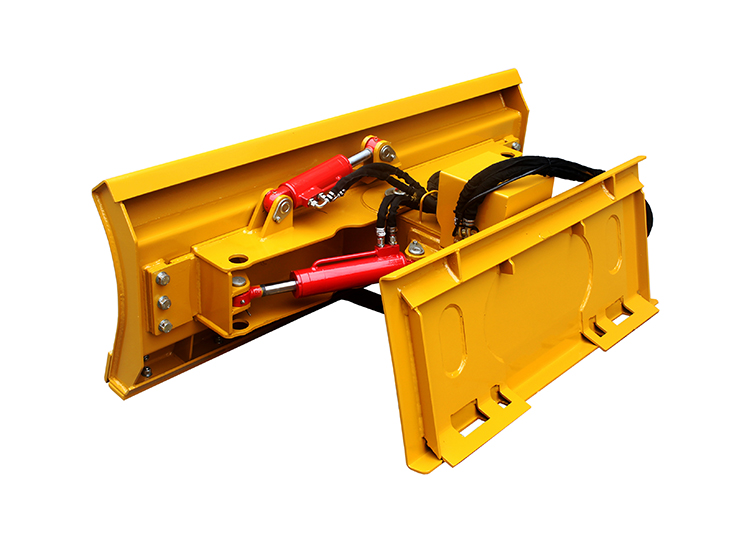

3. The HCN Tilting Dozer Blades are available in either 72" 84" or 96" width and feature integrated tilting systems for precise grading, leveling, and trenching. With a tilt indicator visible from the operators position, you will be able to clearly see the blades position as you tilt left or right 30º off center, and up to 10º off horizontal in both directions.

Data

Technical Specifications

· Universal skid-steer loader quick attach mounting, or use on skid-steers up to 110 HP

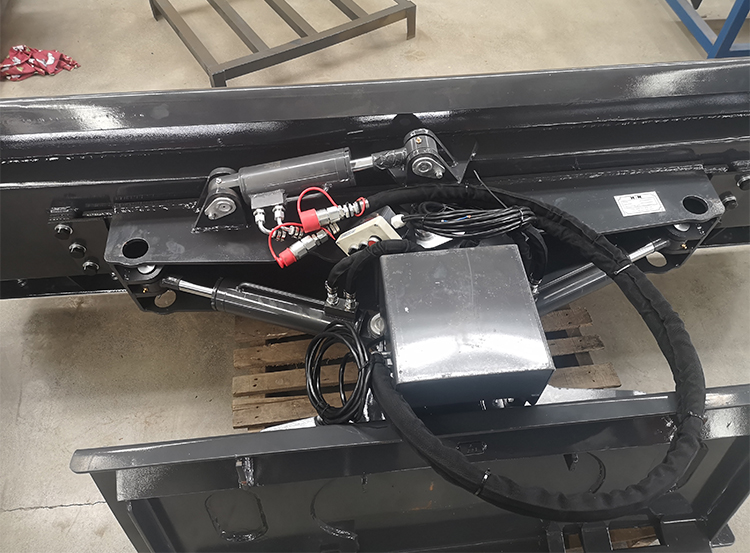

· Angle and tilt cylinders are interchangeable and equipped with self aligning bushings

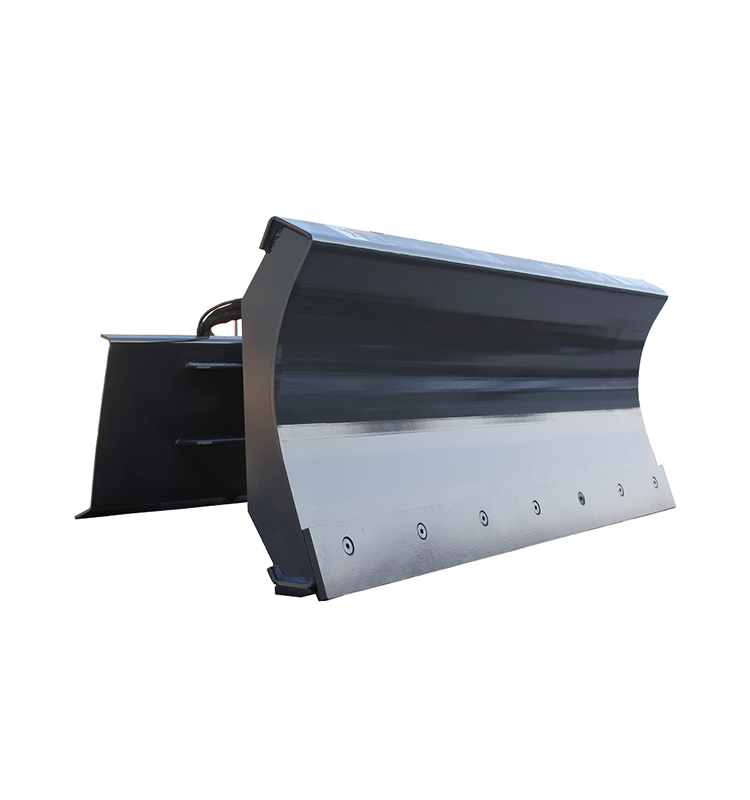

· Reversible ¾” x 8” bolt-on cutting edge & formed moldboard.31” thick & 28” high

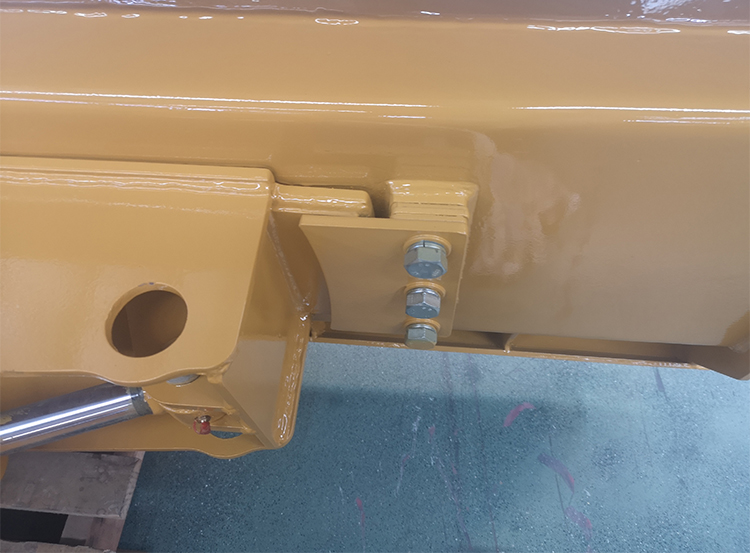

· Large 3” center pivot pin with hardened steel bushings

· Full length high carbon steel, replaceable skid shoe

Model	030960	030972	030984	030996
Overall width (mm)	1530	1830	2130	2400
Steering 30°width (mm)	1270	1519	1845	2180
Overall Height (mm)	700	700	700	700
Overall Length (mm)	965	965	965	965
Deflection angle （°）	±30	±30	±30	±30
Maximum angle of yaw （°）	±10	±10	±10	±10
Weight (Kg)	525	556	575	625
Working flow（L/Min）	20-30	20-30	20-30	20-30
Operating Voltage （V）	DC12/24	DC12/24	DC12/24	DC12/24
Maximum pressure allowed (MPa)	21	21	21	21
Package Size (m3)	16801100900	19801100900	22801100900	25501100900
Pack weight	38KG	40kg	42KG	45KG

Engineering

Key Features & Benefits

0309 Series Dozer BladeFactory-built HCN attachment listed under Backhoe Loader Attachments. Confirm coupler geometry and hydraulic data against the specification table before ordering.
Use caseGrading & Leveling
Export supportQuotation, fitment review and export packing documentation for Australian and overseas delivery.

Fitment

Machine Compatibility

This product is published under Backhoe Loader Attachments. Mounting interface, carrier size and hydraulic supply must match your machine — use the Technical Specifications table where provided (including any Suitable Machine or carrier row per model).

Catalogue category	What to confirm
Backhoe Loader Attachments	Machine brand and model; mounting plate or coupler type; hydraulic flow and pressure (L/min, bar) for hydraulic tools; quantity and delivery location.

Jobsite

Applications

Typical uses depend on machine capability and local regulations. Examples for this machine line:

06 — Programs

OEM & Custom Options

HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.

Dimensions & capacity Custom width, working depth, capacity, and duty configuration for your market.
Mounting interface Quick-attach plates, coupler geometry, and pin dimensions matched to machine data.
Hydraulic setup Standard-flow / high-flow options and circuit layout confirmed before production.
Private label Color, logo, nameplate, and export packaging for OEM and distributor brands.
After-sales kits Wear parts and spare kits for dealer stock and field service support.

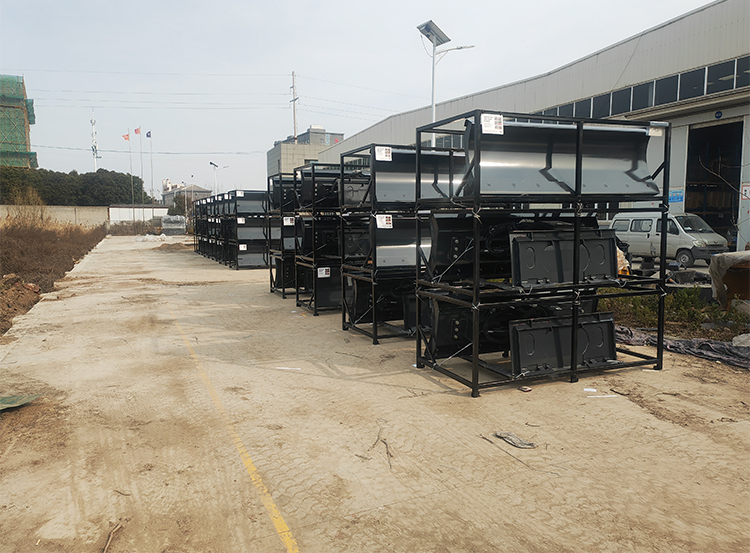

Export packing Steel frame or crate packing prepared for container loading and destination handling.

Share annual volume, destination country, and branding requirements for a manufacturing proposal.

20+Years manufacturing attachments
400+Attachment models in portfolio
21,000㎡Modern production facility
CE / ISOQuality systems for export markets

07 — Buying

FAQ

What machines is 0309 Series Dozer Blade compatible with?

Send machine brand, exact model, operating weight, and hydraulic flow/pressure for 0309 Series Dozer Blade. We confirm the mounting interface and recommend the correct configuration before quotation.

What information do you need for an accurate quote on 0309 Series Dozer Blade?

Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.

What hydraulic flow does 0309 Series Dozer Blade require?

Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.

Can 0309 Series Dozer Blade mounting and branding be customized?

Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.

How fast can I get a quotation for 0309 Series Dozer Blade?

Click Request A Quote, email shinzhang@hcnatta.com.au, or call +61 416451515. Complete inquiries are usually answered within 1 business day.
