Skid Steer Snow Blowers are a popular snow removal attachment that are great for removing thick, heavy, wet dirty and loose snow from parking lots, roads, and sidewalks. Snow Blowers vary from other snow removal attachments like Snow Plows and Snow Pushers, which are better for all kinds of snow.
Data
The HCN Standard Snow Blower Attachment is available in three different sizes and edge kits and universal attachment plates.
You may also choose an additional Poly Shoe Kit. You must select one of the electric control options with this product. Please be sure to match the control option with your make and model of skid steer loader. Hydraulic chute has 270 degrees of rotation and a deflector angle that allows extremely accurate snow placement

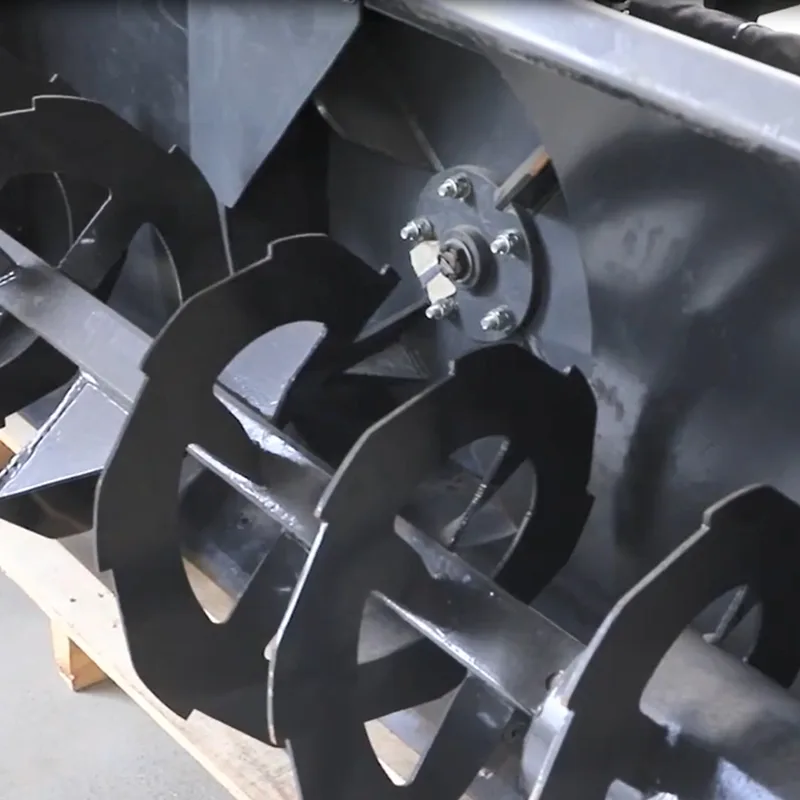

· Aggressive toothed 16″ auger with 2 ¼ x ¼” ribbon flighting
· 4 blade fan, 22″ diameter, 6 1/2″ deep
· No shear pins; high pressure bypass relief system
· No chains; direct drive auger and fan
· 270◦ hydraulic rotary chute with 7” opening
· Hydraulic chute deflector
· Adjustable hardened steel skid shoes
· 7 gauge steel fan housing
· 10 gauge steel blower shell
· 1/4″ end plates
· High strength corner bracing
· Bolt-on grader cutting edge
What's Included?
· Extreme Duty Snow Blower
· Universal skid steer mounting plate
· Hydraulic hoses
· Flat Faced couplers
· Owner's manual
Sometimes，especially in spring ，we get thick, heavy, wet dirty snow that causes some standard snowblowers to jam up,But with the HCN Snow Blower, you can easily handle even the toughest snow. There is only one main reason why having the larger fan is better, less jamming. With a smaller fan, you can easily jam on ice or debris while snow blowing. Please note that you shouldn't intentionally run debris through your snowblower, but this larger fan helps it run smoothly, even when digging through chunks of ice.
Adopt power self-adaption valve and dual motors direct-drive design and larger fan, completely solve the problem of snow jam. When the fan motor gets stuck due to too much snow, the auger motor gets the signal, decrease rotate speed, the input amount of snow is reduced. After the fan motor throws the snow to solve the problem of snow jam. Increase the speed of the auger motor to increase the input amount of snow. Work is balanced.
Main technical parameters:
Model | 0209H84 | 0209H72 |
Total length（mm） | 1120 | 1120 |
Total width（mm） | 2200 | 1896 |
Total height（Low throw standard）（mm） | 1695 | 1695 |
Total height（High throw Optional）（mm) | 3458 | 3458 |
Transport height（mm) | 1593（Low）/2140（High） | 1593（Low）/2140（High） |
Operating weight (include quick hitch)（kg） | 554（Low）/600（High） | 520（Low）/570（High） |
Operation method | Electro-hydraulic control | Electro-hydraulic control |
Rotation angle（°） | 270(Low)/200（High） | 270（Low）/200（High） |
Maximum loading height (high throwing option)（m) | 3.3 | 3.3 |
Farthest snow throwing distance（m) | 12 | 12 |
Hydraulic flow（L/min） | 75-150 | 75-150 |
Allow Max. pressure（Mpa) | 20 | 20 |
Suit to machine（High hyfraulic flow） | Skid steer loader | Skid steer loader |
Engineering
Fitment
This product is published under Backhoe Loader Attachments. Mounting interface, carrier size and hydraulic supply must match your machine — use the Technical Specifications table where provided (including any Suitable Machine or carrier row per model).
| Catalogue category | What to confirm |
|---|---|
| Backhoe Loader Attachments | Machine brand and model; mounting plate or coupler type; hydraulic flow and pressure (L/min, bar) for hydraulic tools; quantity and delivery location. |
Jobsite
Typical uses depend on machine capability and local regulations. Examples for this machine line:
06 — Programs
HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.
Share annual volume, destination country, and branding requirements for a manufacturing proposal.
07 — Buying
Send machine brand, exact model, operating weight, and hydraulic flow/pressure for 0209H Snow Blower. We confirm the mounting interface and recommend the correct configuration before quotation.
Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.
Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.
Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.
