HCN Australia

Wheel Loader Attachments

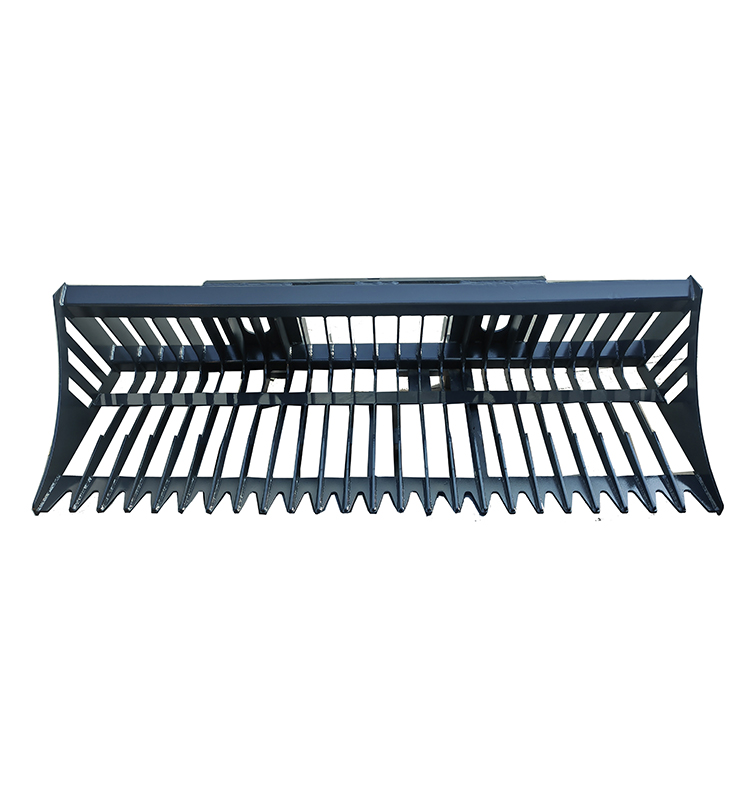

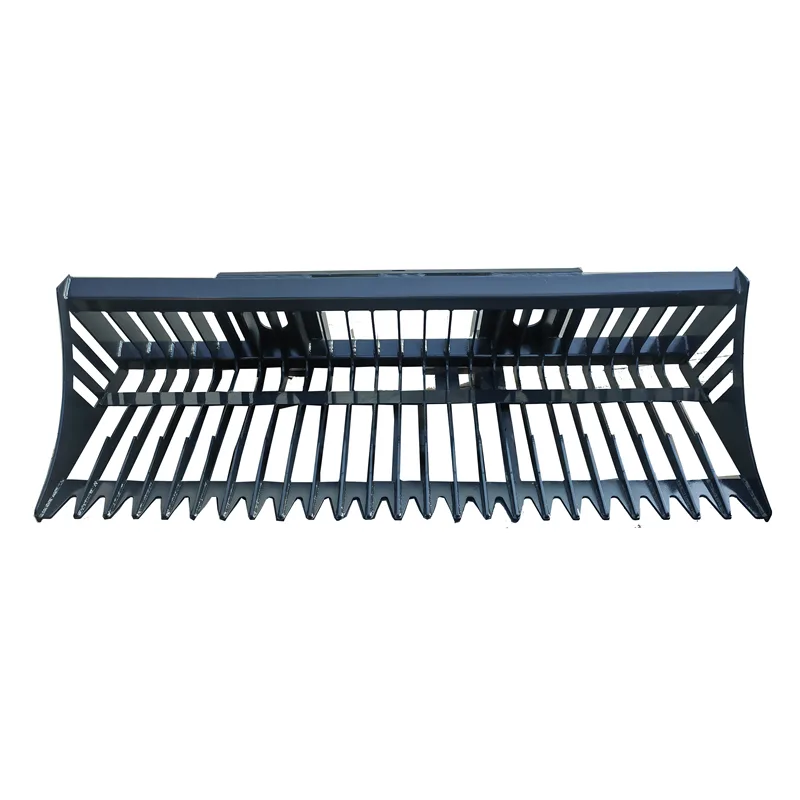

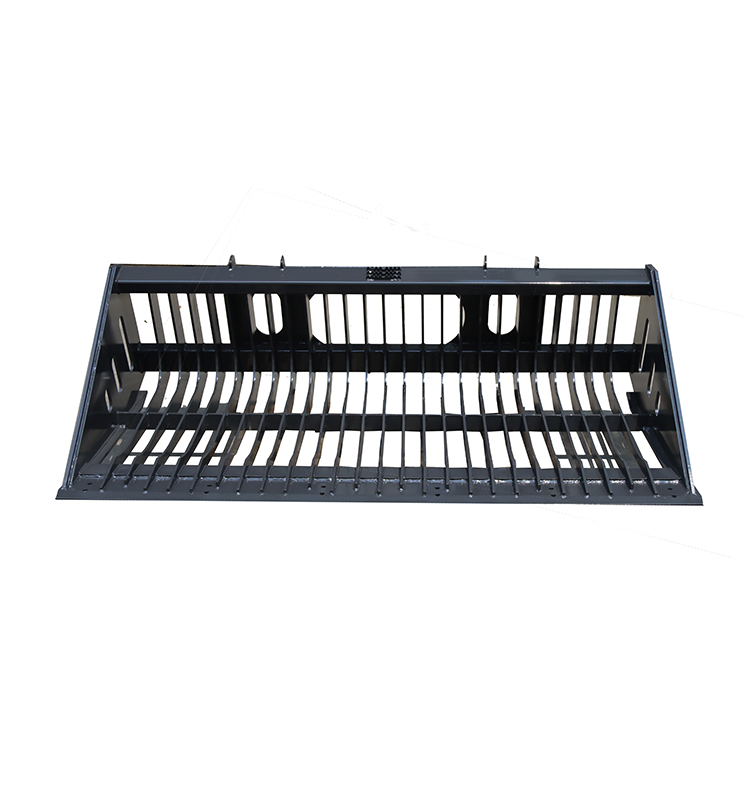

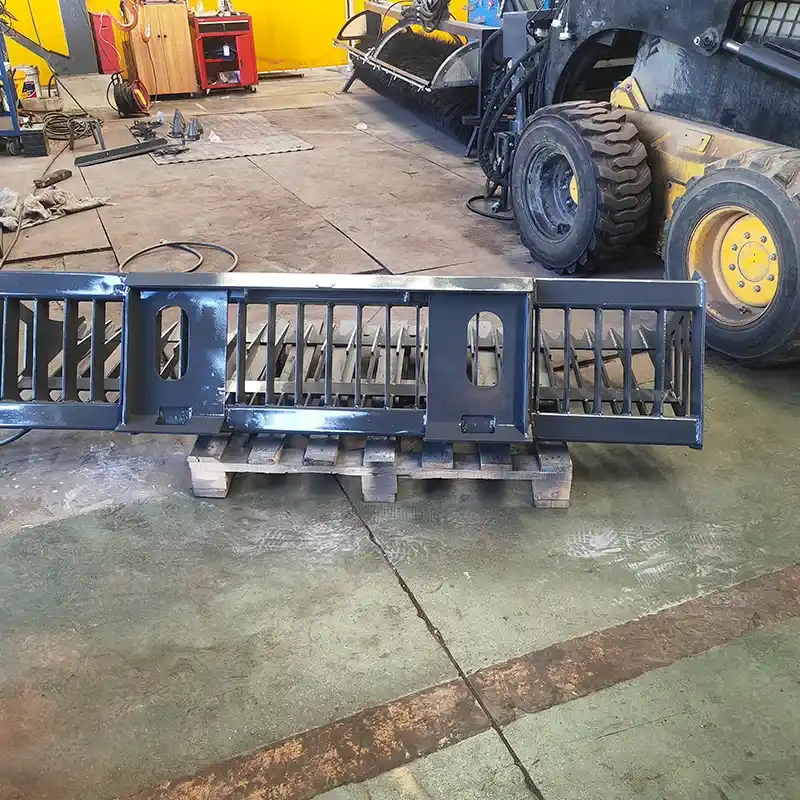

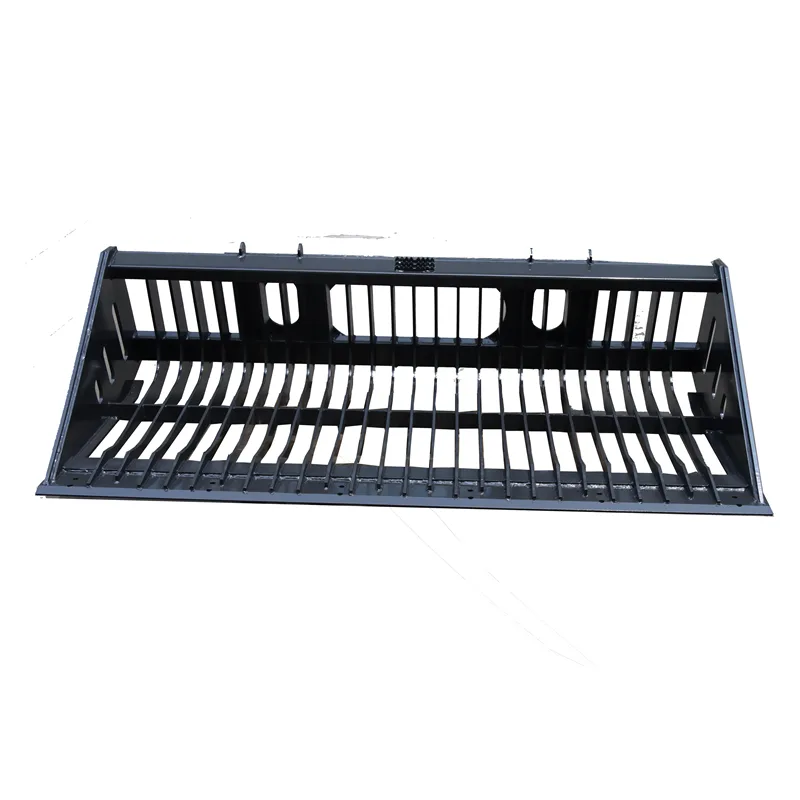

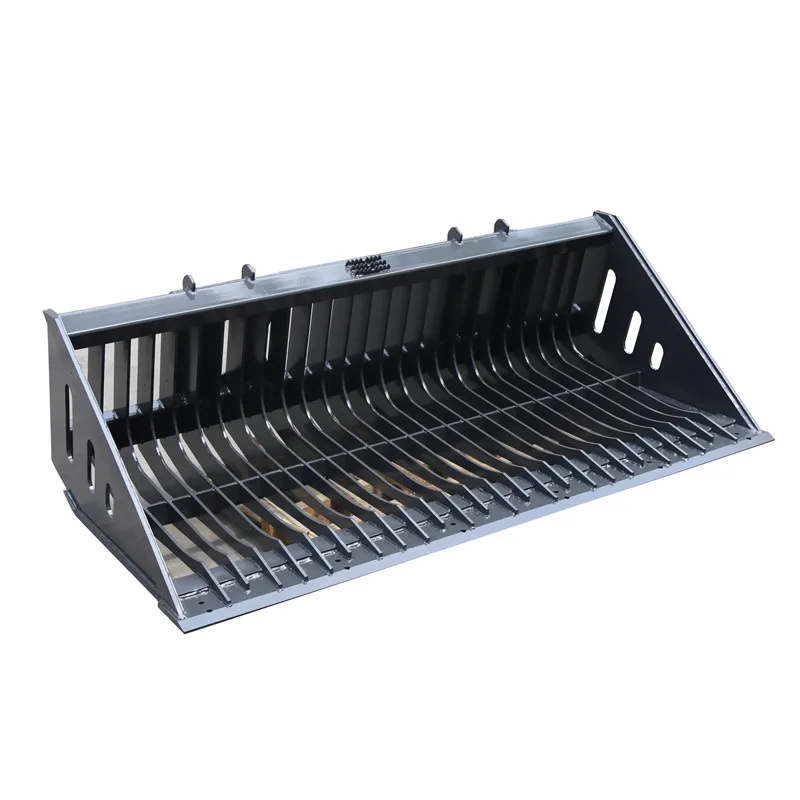

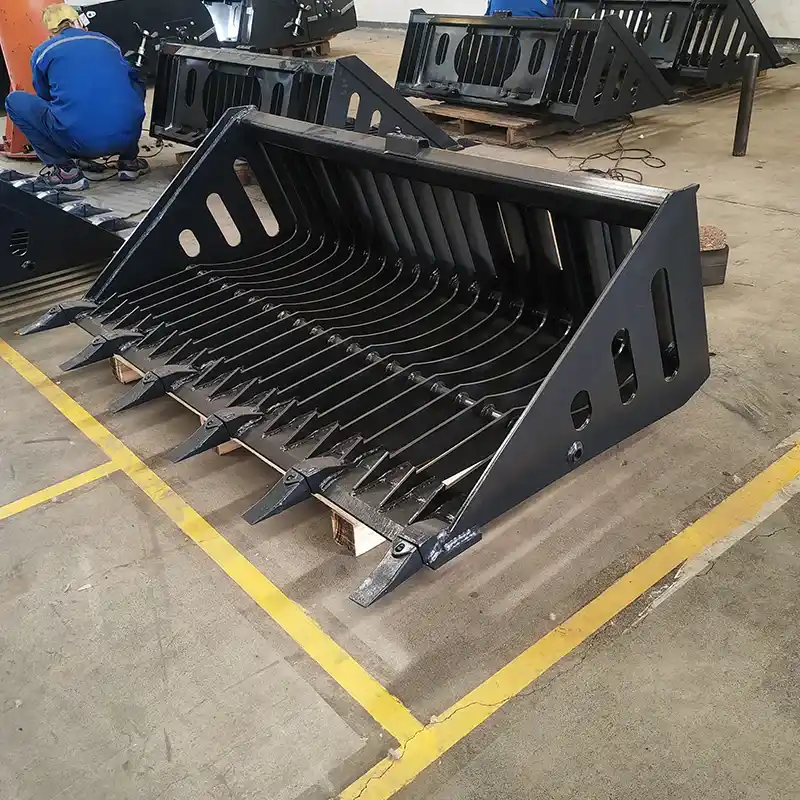

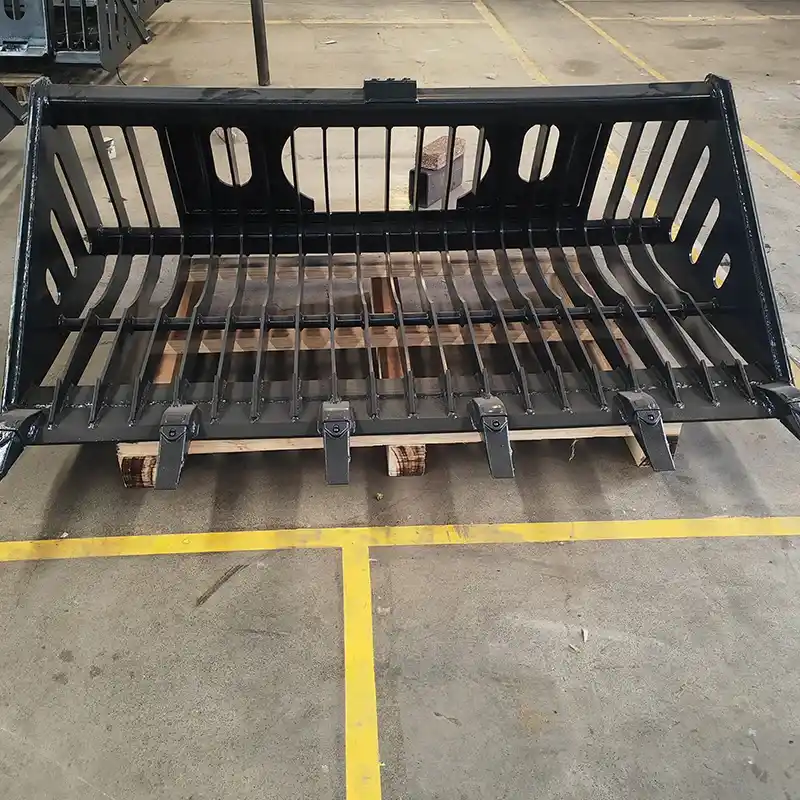

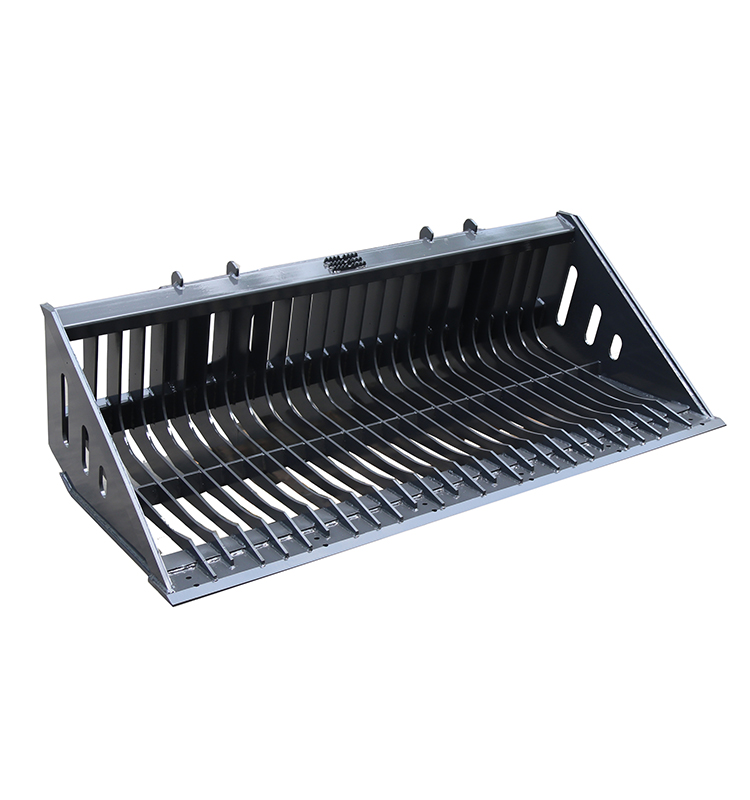

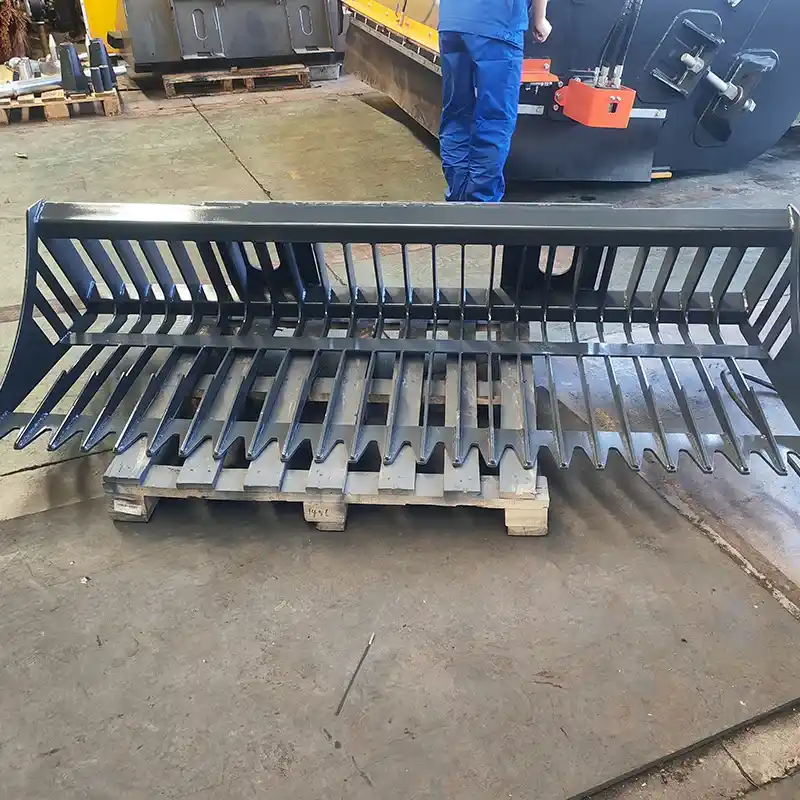

0101 Rock Bucket

Rock & Aggregate Loading

Catalogue category: Wheel Loader Attachments
Technical specifications and model data on this page
Fitment review available before export quotation

Contact export team

Include machine brand/model, hydraulic flow and pressure (if applicable), quantity and Australian delivery port or inland requirements.

Product

Overview

· Separate rocks, debris and other unwanted objects while leaving finer material behind

· The tines scoop and retain debris while the soil sifts through, helping to easily separate materials

· Designed to last in tough working conditions, the tines are interconnected to provide strength and durability

· Ideal attachment for contractors, landscapers and homeowners with acreage.

Gusseted Tines

· Each tine is fully gusseted on both sides for added strength and durability when working in tough conditions. Also, tines are interconnected for additional operating strength.

Data

Technical Specifications

Skeletal Design

· Designed for maximum operating performance, the skeletal design of the rock bucket allows the tip of the bucket to always be visible to the operator.

Steel Strength

· High steel strength, used in all components of the rock bucket design, provides for a more durable attachment design.

Versatility

· The rock bucket operates above ground to remove surface vegetation, and also operates below ground to remove submerged objects.

Top Tasks

· Clear rocks and debris from jobsites

· Prepare and clear land for landscaping

· Remove rocks from farm fields

· Clear debris for property maintenance

How It Works

To operate the rock bucket, the tines are submerged below the grade and object. When the bucket is raised up, objects stay in the bucket while loose material falls through the tines. The rock bucket effectively clears the soil surface of vegetation and other debris. It also pulls objects from below ground.

Model	Mini010140	Mini010148	010160	010172	010184
Overall Width (mm)	1015	1245	1580	1890	2190
Overall length (mm)	790	790	945	945	945
Overall height (mm)	500	500	700	700	700
Teeth distance（mm）	94	94	62	62	62
Overall weight（kg）	80	100	255	290	330
Shape volume (CBM) M3			0.25	0.30

Engineering

Key Features & Benefits

0101 Rock BucketFactory-built HCN attachment listed under Wheel Loader Attachments. Confirm coupler geometry and hydraulic data against the specification table before ordering.
Use caseRock & Aggregate Loading
Export supportQuotation, fitment review and export packing documentation for Australian and overseas delivery.

Fitment

Machine Compatibility

This product is published under Wheel Loader Attachments. Mounting interface, carrier size and hydraulic supply must match your machine — use the Technical Specifications table where provided (including any Suitable Machine or carrier row per model).

Catalogue category	What to confirm
Wheel Loader Attachments	Machine brand and model; mounting plate or coupler type; hydraulic flow and pressure (L/min, bar) for hydraulic tools; quantity and delivery location.

Jobsite

Applications

Typical uses depend on machine capability and local regulations. Examples for this machine line:

06 — Programs

OEM & Custom Options

HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.

Dimensions & capacity Custom width, working depth, capacity, and duty configuration for your market.
Mounting interface Quick-attach plates, coupler geometry, and pin dimensions matched to machine data.
Hydraulic setup Standard-flow / high-flow options and circuit layout confirmed before production.
Private label Color, logo, nameplate, and export packaging for OEM and distributor brands.
After-sales kits Wear parts and spare kits for dealer stock and field service support.
Export packing Steel frame or crate packing prepared for container loading and destination handling.

Share annual volume, destination country, and branding requirements for a manufacturing proposal.

20+Years manufacturing attachments
400+Attachment models in portfolio
21,000㎡Modern production facility
CE / ISOQuality systems for export markets

07 — Buying

FAQ

What machines is 0101 Rock Bucket compatible with?

Send machine brand, exact model, operating weight, and hydraulic flow/pressure for 0101 Rock Bucket. We confirm the mounting interface and recommend the correct configuration before quotation.

What information do you need for an accurate quote on 0101 Rock Bucket?

Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.

What hydraulic flow does 0101 Rock Bucket require?

Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.

Can 0101 Rock Bucket mounting and branding be customized?

Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.

How fast can I get a quotation for 0101 Rock Bucket?

Click Request A Quote, email shinzhang@hcnatta.com.au, or call +61 416451515. Complete inquiries are usually answered within 1 business day.

B2B Inquiry

Request A Quote for 0101 Rock Bucket

Share machine model, hydraulic data, quantity, and destination country. Our export team typically replies within 1 business day.

Contact Export Team →
