Excavator AttachmentsSoil Compaction
Include machine brand/model, hydraulic flow and pressure (if applicable), quantity and Australian delivery port or inland requirements.
Product

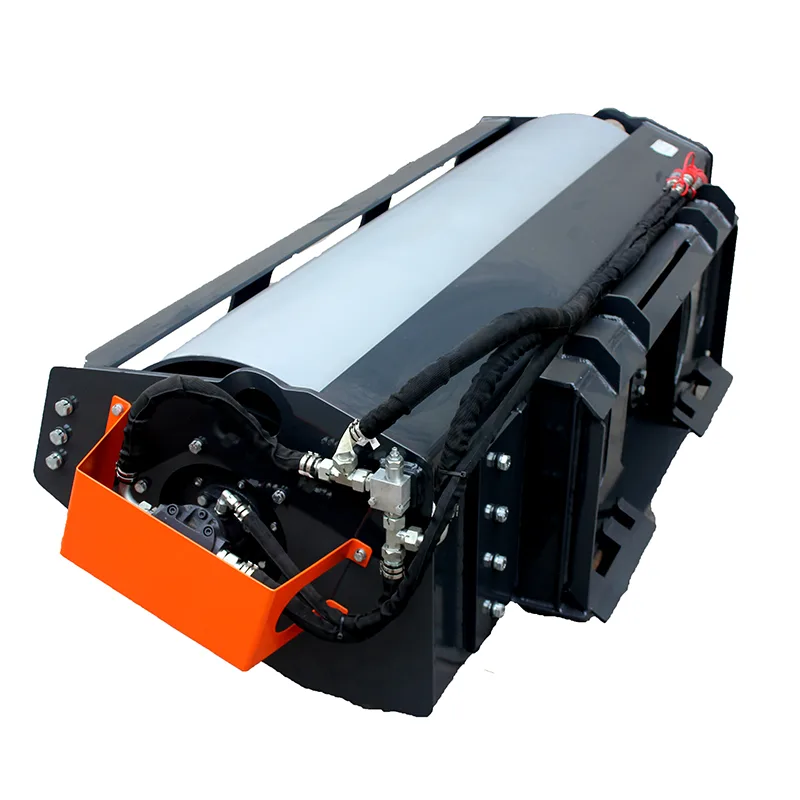

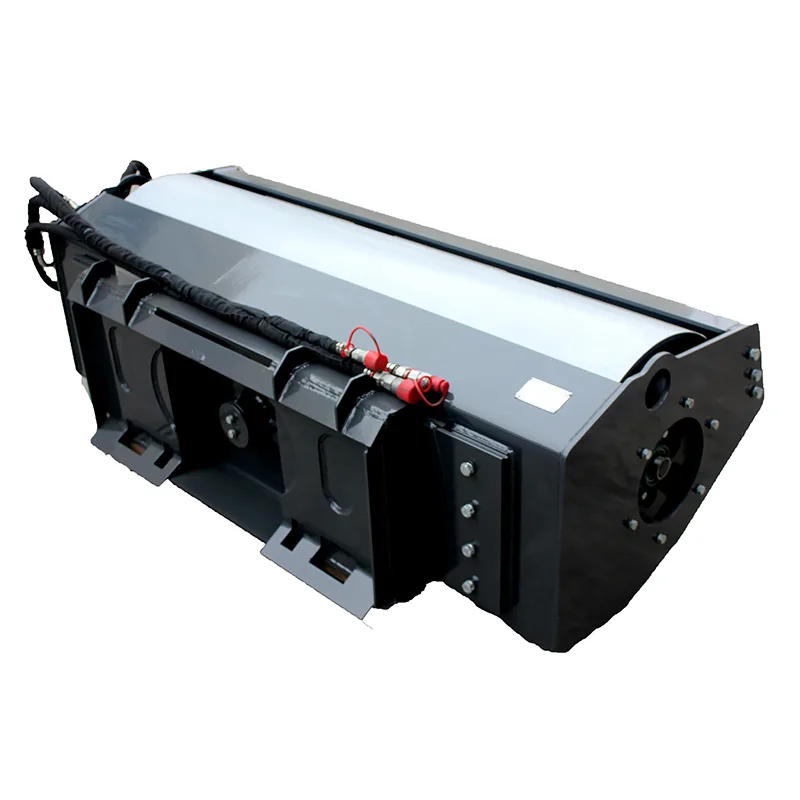

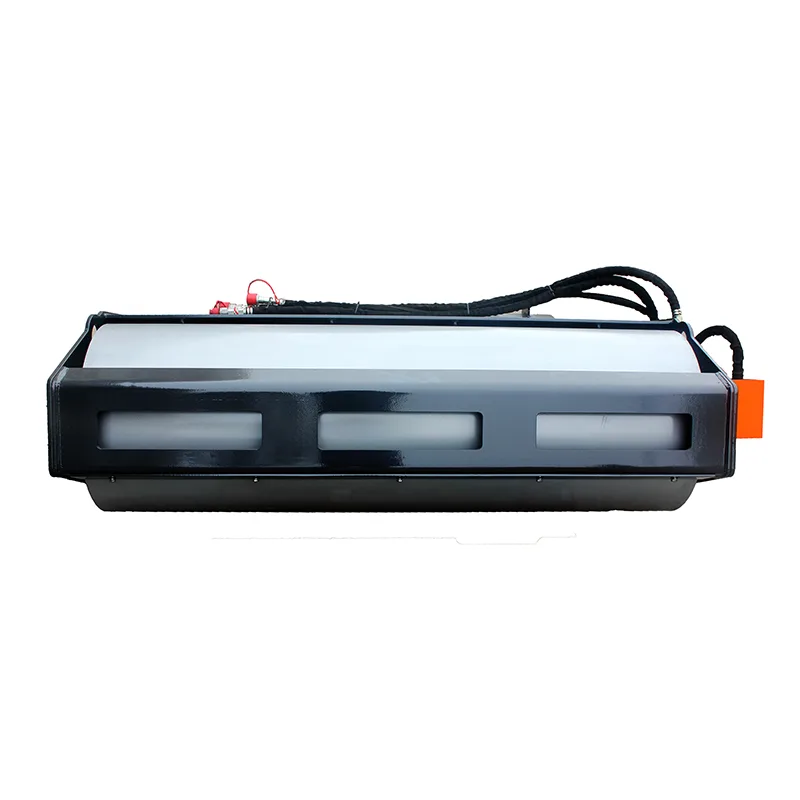

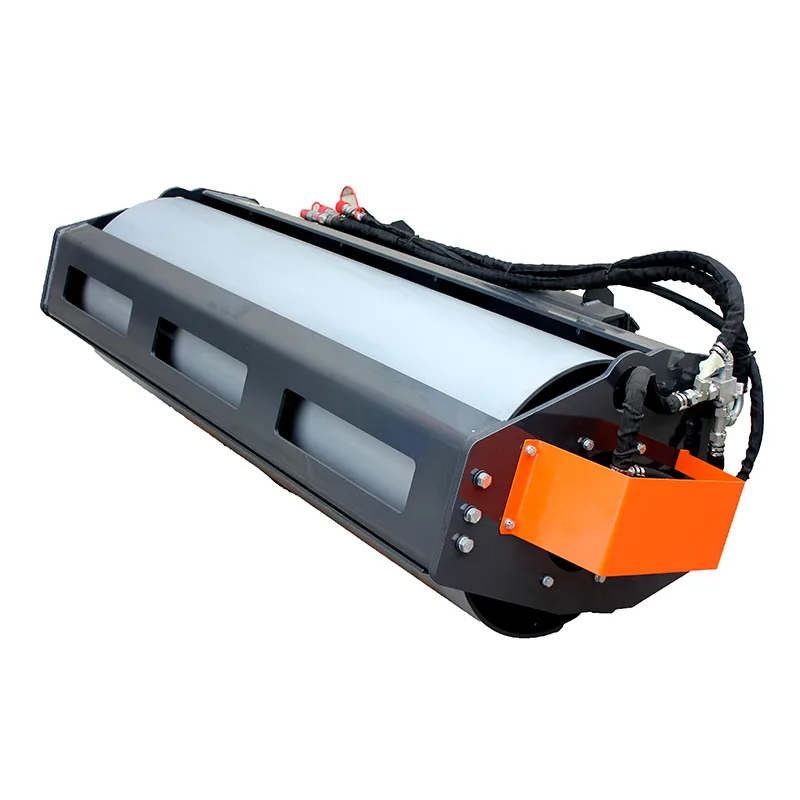

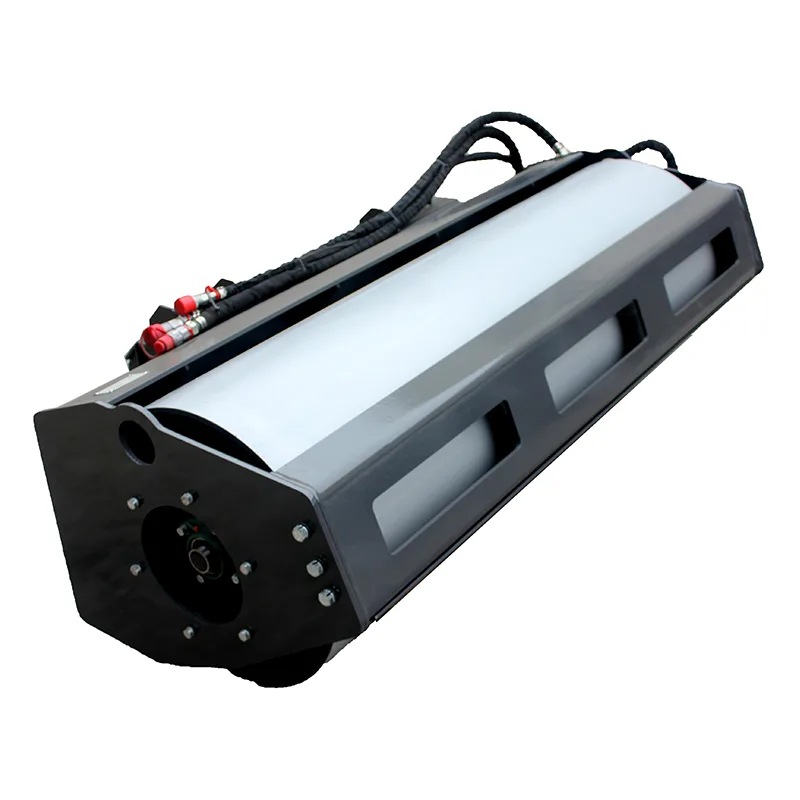

The HCN Vibratory Roller Attachment for skid steers is heavy duty and ideal for rental fleets, contractors, landscaping, roadways, walkways, bike paths, golf courses, bridges, and parking lots. If you have a surface that needs to be compacted flat without wasting time, these smooth drum rollers are the attachments for you!
Data
Compare these rollers to any manufacturer's offerings and they don't compare. These are extremely well built, as they need to be. They are hard hitting machines that can deliver up to 8550 lbs. of dynamic force when operating at 20 GPM. These commercial duty rollers have hydraulic drives that are protected and isolated to provide maximum performance and reliability. Their versatility makes them highly effective on a wide range of materials including sand, gravel, soils and asphalt.
The steel drum has an adjustable scraper blade between the frame and drum ensuring smooth and uniform compaction performance. The quality of these rollers makes them ideal for rental fleets, contractors, landscaping, roadways, walkways, bike paths, golf courses, bridges and parking lots.
• Hydraulic drives are protected and isolated to provide maximum performance and reliability
• Delivers up to 9,370 lbs or dynamic force when operating at 20 GPM
• The hydraulic system of this skid steer is equipped with motor protection device so that can extend motor use life time. Double drum design, Oil-immersed lubrication design, same as BOMAG and Ingersoll Rand technical solutions.
• Compared with large road roller, this product has the characteristics of flexible operation, small ground and low capital investment.
· Hydraulically powered exciter system
· Minimized exciter shaft deflection
· Lower operating temperatures
· Drums isolated from frame to minimize vibration transmission
· Cost-effective and low-maintenance
· Fully supported parts
· Smooth and Pad Foot models available
· Industry-leading bearing design
· Integral knockdown blade
Model | 020560 | 020572 |
Overall length（mm） | 1760 | 2060 |
Overall width (mm) | 980 | 980 |
Overall height (mm) | 666 | 666 |
Roller diameter (mm) | φ590 | φ590 |
Weight （Kg） | 890 | 955 |
Dynamic Force（KN） | 31 @ 60 | 37 @ 60 |
Roller tilt（°） | ±15° | ±15° |
Working flow（L/Min） | 60-70 | 60-70 |
Working pressure（MPa） | 20 | 20 |
Suit to machine | Skid loader/small wheel loader | Skid loader/small wheel loader |
Volume (m3) | 2.118 | 2.443 |
Engineering
Fitment
This product is published under Excavator Attachments. Mounting interface, carrier size and hydraulic supply must match your machine — use the Technical Specifications table where provided (including any Suitable Machine or carrier row per model).
| Catalogue category | What to confirm |
|---|---|
| Excavator Attachments | Machine brand and model; mounting plate or coupler type; hydraulic flow and pressure (L/min, bar) for hydraulic tools; quantity and delivery location. |
Jobsite
Typical uses depend on machine capability and local regulations. Examples for this machine line:
06 — Programs
HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.
Share annual volume, destination country, and branding requirements for a manufacturing proposal.
07 — Buying
Send machine brand, exact model, operating weight, and hydraulic flow/pressure for 0205 Vibratory Roller. We confirm the mounting interface and recommend the correct configuration before quotation.
Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.
Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.
Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.
